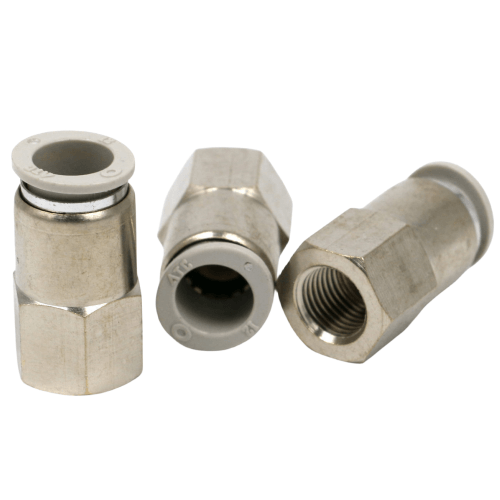

Airtac X-APCF Female Thread Straight Connector X-APCF8M12
$3.58
Regular price
$11.08
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCF8M12
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCF8M12 Internal Thread Straight Connector Specifications
- Model: X-APCF8M12
- Thread type: Metric internal thread (both ends)
- Thread size: M12×1.25
- Material: Stainless steel 303 (corrosion-resistant)
- Surface treatment: Electropolished finish
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥4.5 MPa
- Temperature range: -20℃ to 80℃
- Seal material: NBR (Nitrile) rubber standard (FKM optional)
- Flow coefficient (Cv): 0.35
- Weight: 52g ±2g
- Dimensions: 30mm(L) × 14mm(Ø body) × 19mm(Hex width)
- Torque rating: 15-20 N·m installation torque
- Compatibility: ISO 1179-1 standard
Precision-machined straight connector featuring dual internal threads with leak-proof design. The electropolished inner surface minimizes flow resistance and particle accumulation. Hexagonal body allows tool-assisted installation in confined spaces. Rated for 500,000+ pressure cycles.
Typical Applications:
- Pneumatic cylinder port connections
- Modular pneumatic system integration
- Sensor mounting interfaces
- Vacuum line couplings
- Industrial robot end-effector plumbing
- Compressed air distribution manifolds
Installation guidelines:
Apply 2-3 wraps of PTFE tape on male threads. Use backup wrench on adjacent components during tightening.
Pressure test recommended after installation. Avoid cross-threading - initial hand-tighten for 3 full rotations before applying torque.
| Property | Property Value |
|---|---|
| sku | X-APCF8M12 |
