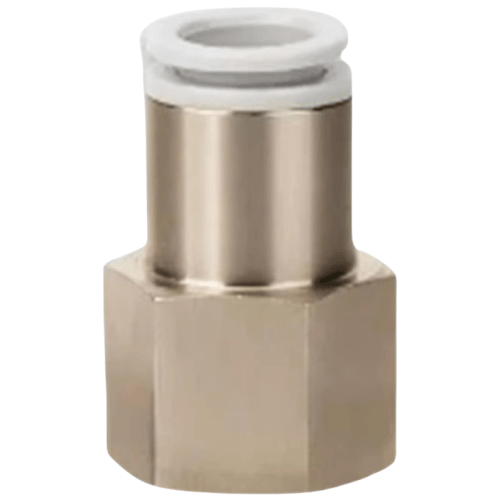

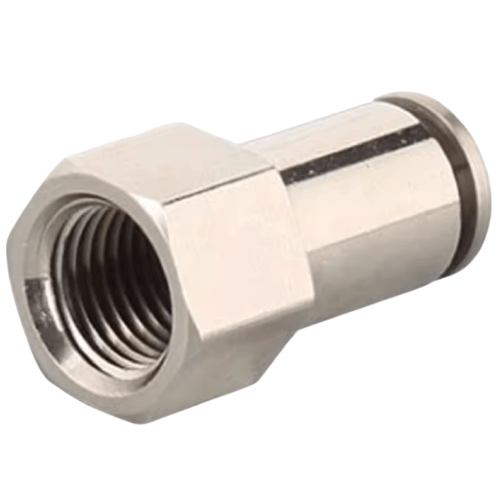

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT1003
AirTAC X-APCFT1003 Full Brass Female Thread Straight Fitting Specifications
- Model: X-APCFT1003
- Type: Straight-through connector with female threads (dual entry)
- Material: Lead-free brass CW617N (RoHS compliant)
- Thread Standard: BSPP (G thread) / Optional NPT upon request
- Thread Size: 1/8" (M5×0.8 available for metric version)
- Max Working Pressure: 1.5 MPa (217 psi)
- Temperature Range: -20℃ to 120℃ (-4°F to 248°F)
- Surface Treatment: Electroplated nickel (3-5μm thickness)
- Seal Type: Metal-to-metal sealing (no O-ring required)
- Torque Resistance: ≤25 N·m installation torque
- Weight: 28±2 grams
- Dimensions: 30mm (L) × 16mm (W) × 16mm (H)
- Certifications: ISO 1179-1 conformity, REACH compliance
Precision-machined brass fitting with corrosion-resistant nickel plating, designed for high-pressure pneumatic and hydraulic systems. Features parallel threads (BSPP) for secure sealing through thread deformation. The compact hexagonal body allows tool engagement with standard 17mm wrenches.
- Compressed air line distribution in CNC machinery
- Vacuum system interconnections for packaging equipment
- Coolant line junctions in semiconductor manufacturing tools
- Hydraulic measurement instrument calibration setups
- Industrial robotic end-effector pneumatic circuits
Installation protocol:
Apply PTFE tape 2.5 turns clockwise on male threads.
Avoid over-tightening – stop rotation when 1.5-2 threads remain visible.
Pressure test at 1.1× system pressure after installation.
| Property | Property Value |
|---|---|
| sku | X-APCFT1003 |
