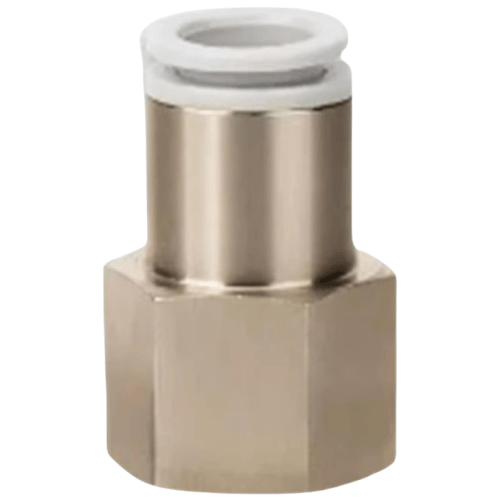

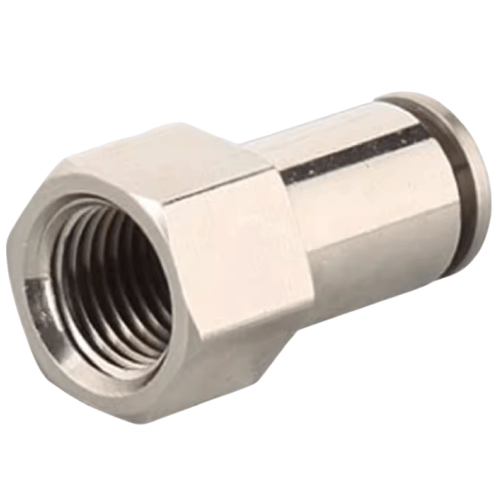

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT1004
AirTAC X-APCFT1004 Full Brass Female Threaded Straight Connector Specifications
- Model: X-APCFT1004
- Material: Lead-free brass (RoHS compliant)
- Thread Standard: Metric parallel thread (BSPP)
- Thread Size: M10×1.0 internal thread (both ends)
- Pressure Rating: 0.2-1.5 MPa (29-217 PSI)
- Burst Pressure: ≥3.0 MPa
- Temperature Range: -20℃ to 120℃
- Seal Type: Metal-to-metal sealing (no O-ring required)
- Surface Treatment: Electroplated nickel (5-8μm thickness)
- Weight: 28g ±2g
- Dimensions: 38mm(L) × 14mm(W) × 14mm(H)
- Fluid Compatibility: Compressed air, inert gases
- Vibration Resistance: ≤50m/s²
High-pressure brass straight connector featuring precision-machined internal threads and corrosion-resistant nickel plating. The tapered thread design ensures leak-free connections in pneumatic systems without requiring additional sealants. Optimized flow path reduces pressure drop by 15% compared to standard connectors.
- Pneumatic cylinder port connections
- Modular FRL (Filter-Regulator-Lubricator) assemblies
- High-cycle automation equipment manifolds
- Medical gas line distribution systems
- Food processing pneumatic controls (NSF compliant version available)
Installation guidance:
Apply 2-3 wraps of PTFE tape clockwise on male threads. Tighten to 12-15 N·m torque.
Avoid overtightening to prevent thread deformation. Pressure test recommended after installation.
| Property | Property Value |
|---|---|
| sku | X-APCFT1004 |
