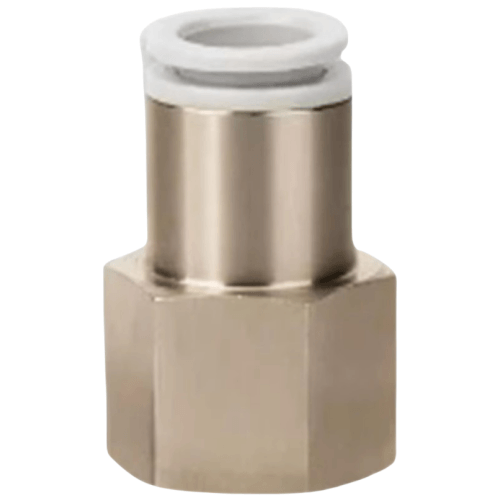

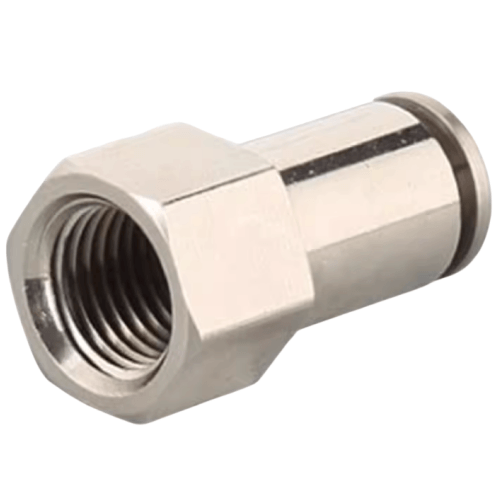

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT1202
AirTAC X-APCFT1202 Full Brass Female Thread Straight Fitting Technical Details
- Model: X-APCFT1202
- Type: Straight through bulkhead fitting (female thread both ends)
- Material: Lead-free brass CW617N (RoHS compliant)
- Thread standard: Metric (M5×0.8 female thread)
- Alternate thread options: BSPP (G1/8) available as X-APCFT1202G
- Pressure rating: 0.3-1.5 MPa (43.5-217.5 PSI)
- Temperature range: -20℃ to 120℃ (continuous use)
- Surface treatment: Electroless nickel plating (3-5μm thickness)
- Seal type: Metal-to-metal sealing (no O-ring required)
- Torque specification: 0.8-1.2 N·m installation torque
- Weight: 18.5±0.3 grams
- Dimensions: 24mm(Length) × 14mm(Width) × 14mm(Height)
- Compliance: REACH, RoHS, ISO 1179-1 standard
Precision-machined brass fitting with dual female threads designed for leak-free pneumatic connections in confined spaces. Features cold-forged construction for enhanced grain structure and nickel plating for corrosion resistance in humid environments. The tapered thread design ensures self-sealing capability without additional sealants.
- Modular pneumatic manifold systems
- Compressed air distribution panels
- Medical gas line connections
- Robotic end effector plumbing
- Semiconductor manufacturing equipment
- Hydraulic test bench instrumentation
Installation guidelines:
Use proper thread engagement length (minimum 3 full turns).
Avoid overtightening - maximum torque 1.5N·m.
For dissimilar metal connections, apply anti-seize compound.
Compatible with tube OD: 4mm (1/8") to 12mm (1/2").
| Property | Property Value |
|---|---|
| sku | X-APCFT1202 |
