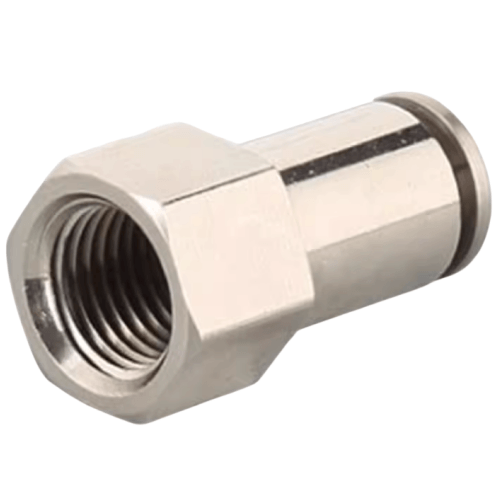

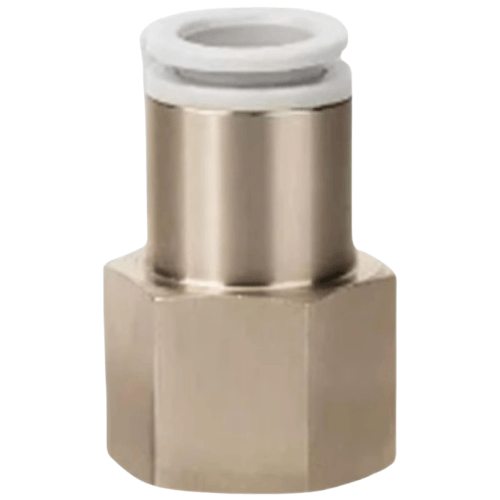

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT1204
AirTAC X-APCFT1204 Full-Brass Female Thread Straight Fitting Technical Details
- Model Code: X-APCFT1204
- Thread Standard: BSPP (Parallel Thread)
- Port Size: 1/4" (DN6)
- Thread Pitch: 19 TPI (Threads Per Inch)
- Material: C3604 Free-Cutting Brass (Lead-Free)
- Surface Treatment: Electroplated Nickel (3-5μm thickness)
- Pressure Rating: 0.05-1.5 MPa (7-217 PSI)
- Temperature Range: -20℃ to 120℃ (-4°F to 248°F)
- Flow Coefficient (Cv): 0.65
- Proof Pressure: 3.0 MPa (435 PSI)
- Burst Pressure: ≥6.0 MPa (870 PSI)
- Weight: 28.5g ±0.5g
- Dimensions: 30mm(L) × 12mm(Dia) × 12mm(Inner Bore)
- Hex Size: 17mm Spanner Flat
- Sealing Method: Metal-to-Metal Seal (No O-ring required)
- Compliance: RoHS 2.0 Directive 2011/65/EU
Precision-engineered brass straight connector featuring cold-forged construction for enhanced grain structure density. The electroless nickel plating provides superior corrosion resistance in humid environments while maintaining excellent thermal conductivity. Designed for zero-leak performance in high-cycle pneumatic systems with 100,000+ connection durability rating.
- Pneumatic cylinder port connections in automated assembly lines
- Compressed air distribution manifolds for CNC machinery
- Vacuum system plumbing in packaging equipment
- Coolant line junctions for laser cutting systems
- Instrumentation gas lines in semiconductor fabrication
Installation Protocol:
Apply PTFE tape clockwise (2.5 wraps minimum) on male threads.
Torque to 12-15 N·m using backup wrench to prevent tubing twist.
Pressure test at 1.25× system pressure before commissioning.
