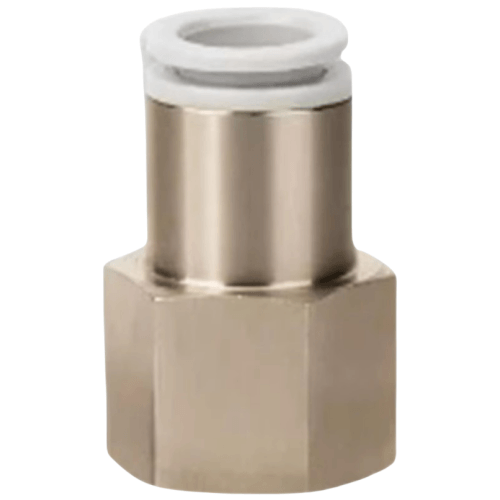

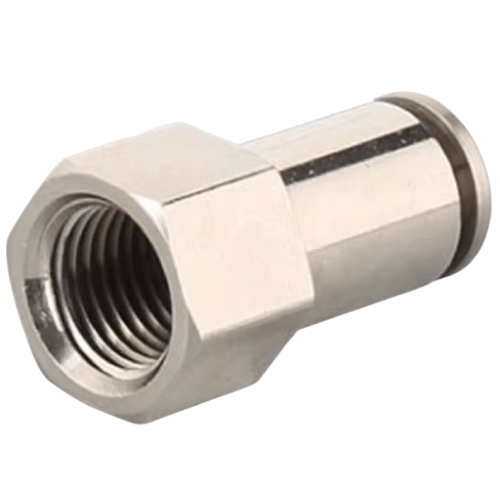

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT401
AirTAC X-APCFT401 Full Brass Female Thread Straight Connector Specifications
- Model: X-APCFT401
- Material: Lead-free brass (RoHS compliant)
- Thread type: BSPP (G thread) female-to-female
- Port size: G1/8 (PT1/8 equivalent)
- Max working pressure: 1.5 MPa (217 psi)
- Proof pressure: 3.0 MPa
- Burst pressure: ≥6.0 MPa
- Temperature range: -20℃ to 120℃
- Seal material: NBR (Nitrile) O-rings
- Surface treatment: Electroplated nickel (3-5μm thickness)
- Weight: 28g ±2g
- Dimensions: 20mm(L) × 12mm(Dia) × 20mm(H)
- Flow coefficient (Cv): 0.12
- Compliance: ISO 1179-1 standard
Precision-machined brass connector with dual female threads, designed for leak-free pneumatic line connections. Features 360° rotatable ports for flexible tubing alignment and nickel plating for corrosion resistance in humid environments. Includes pre-installed NBR seals rated for 10 million cycles.
- Pneumatic cylinder port extensions
- Modular FRL (Filter-Regulator-Lubricator) unit assembly
- Vacuum system tee configurations
- Industrial robot end-effector air supply lines
- Medical gas equipment manifolds
Installation note:
Apply 2-3 drops of pneumatic sealant (LOCTITE® 577 equivalent) on threads
before final tightening. Torque limit: 12-15 N·m. Avoid overtightening
to prevent port deformation.
| Property | Property Value |
|---|---|
| sku | X-APCFT401 |
