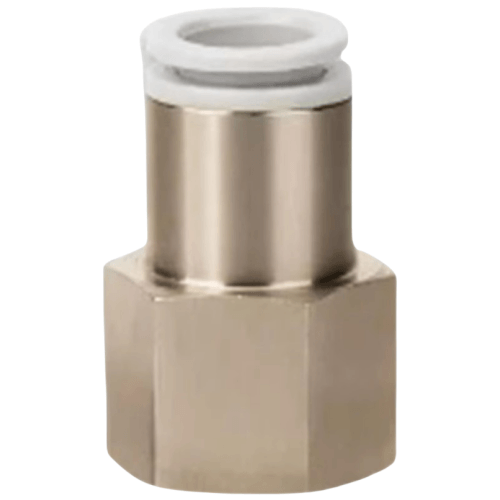

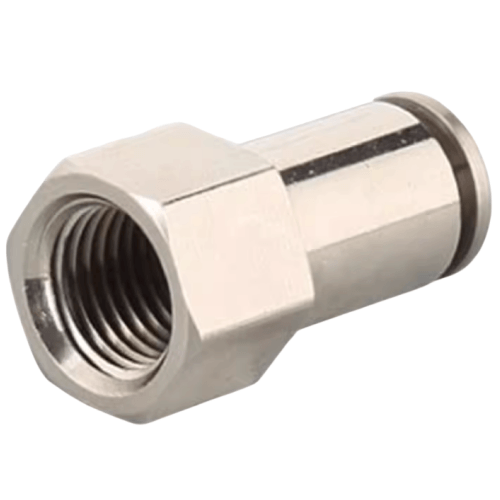

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT402
AirTAC X-APCFT402 Full Brass Female Thread Straight Fitting Technical Details
- Model: X-APCFT402
- Type: Straight through bulkhead fitting (male x female)
- Material: Lead-free brass CW617N (RoHS compliant)
- Thread standard: BSPP (G thread) / Optional NPT upon request
- Thread size: 1/8" (R1/8 external thread x G1/8 internal thread)
- Pressure rating: 1.5 MPa (217 psi) maximum working pressure
- Burst pressure: ≥4.5 MPa (653 psi)
- Temperature range: -20℃ to 120℃ (-4°F to 248°F)
- Surface treatment: Electroplated nickel (3-5μm thickness)
- Seal configuration: Metal-to-metal sealing with optional O-ring groove
- Hex size: 14mm wrench flat
- Weight: 98g ±2g
- Dimensions: 40mm(L) × 12mm(OD) × 12mm(ID passage)
- Flow coefficient (Cv): 0.35
- Vibration resistance: 10-2000Hz, 5G acceleration
- Certifications: ISO 1179-1, ISO 6149-3, REACH
Precision-machined brass bulkhead connector featuring dual sealing surfaces and anti-vibration knurling. The through-hole design maintains consistent inner diameter to minimize pressure drop, with chamfered edges (0.3mm) for easy hose insertion. Nickel plating provides corrosion resistance in humid environments.
- Pneumatic panel mounting in automation equipment
- Hydraulic power unit manifold connections
- Coolant line passthroughs in CNC machinery
- Compressed air distribution in automotive assembly lines
- Vacuum system interfaces for semiconductor tools
Installation protocol: Apply 2-3 wraps of PTFE tape on male threads (clockwise winding).
Torque to 12-15 N·m using crowfoot wrench. Avoid overtightening - sealant
engagement occurs at 1.5-2 full turns past finger-tight position.
Warning: Not compatible with acetylene or oxygen systems. For gas applications, specify optional oxygen-cleaned version (X-APCFT402-OX).
| Property | Property Value |
|---|---|
| sku | X-APCFT402 |
