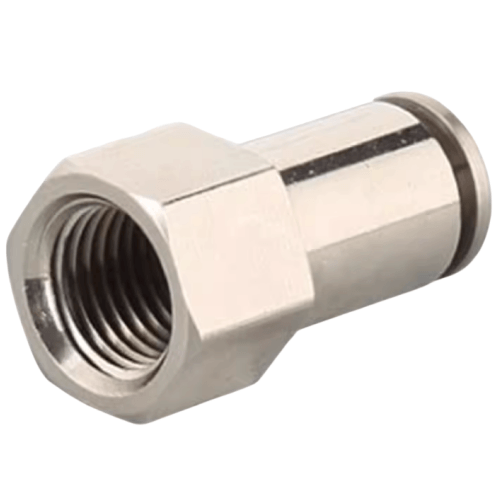

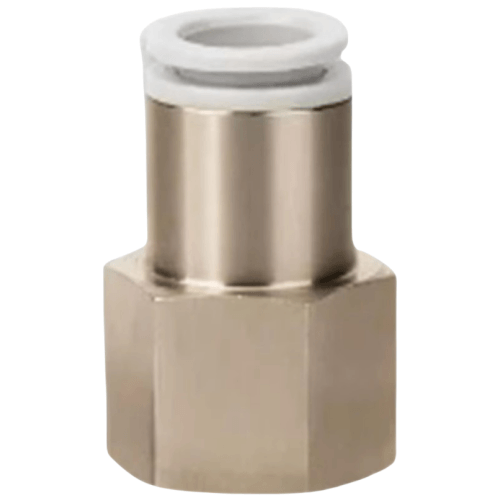

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT4M5
AirTAC X-APCFT4M5 Full Brass Female Threaded Straight Connector Specifications
- Model: X-APCFT4M5
- Type: Straight through connector (female thread both ends)
- Thread standard: Metric (M5×0.8 internal thread)
- Material: CW617N lead-free brass body
- Surface treatment: Electroplated nickel (3-5μm thickness)
- Pressure rating: 0.05-1.5 MPa (7-217 psi)
- Temperature range: -20℃ to 120℃ (continuous use)
- Proof pressure: 3.0 MPa
- Burst pressure: ≥6.0 MPa
- Weight: 8.2±0.3g
- Dimensions: 18mm(L) × 10mm(W) × 10mm(H)
- Seal material: NBR (standard) / FKM (optional)
- Torque resistance: ≤3 N·m installation torque
- Compliance: RoHS 2.0 compliant
Precision-machined brass pneumatic connector with 360° rotatable thread engagement, featuring anti-vibration ridges and leak-proof tapered seat design. The nickel plating provides enhanced corrosion resistance for humid environments. Compatible with air, inert gases, and water applications when using appropriate seals.
- Pneumatic cylinder port extensions
- Modular pneumatic circuit assembly
- Sensor mounting brackets in automation lines
- Medical gas delivery systems (with FKM seals)
- Compressed air tool quick-connect systems
Installation guide:
Apply 2-3 wraps of PTFE tape clockwise on male threads.
Tighten with 1.0-1.5 N·m torque using 8mm wrench flats.
Avoid overtightening to prevent thread deformation.
| Property | Property Value |
|---|---|
| sku | X-APCFT4M5 |
