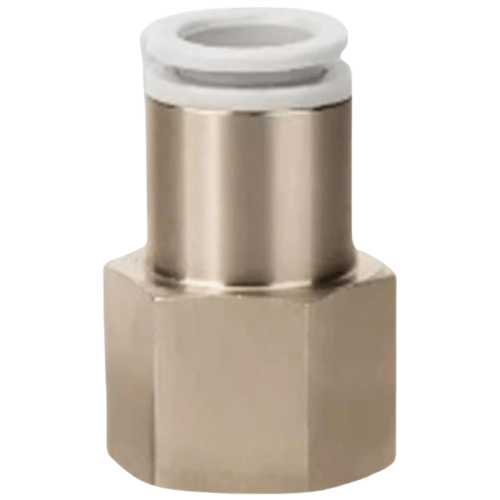

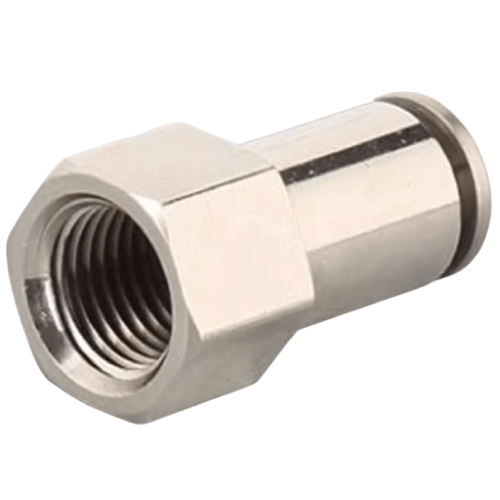

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT6M5
AirTAC X-APCFT6M5 Full-Brass Straight Threaded Fitting Specifications
- Model: X-APCFT6M5 (X-Series Precision Connector)
- Thread type: Metric internal thread (M5×0.8)
- Material: Lead-free brass CW617N (RoHS compliant)
- Surface treatment: Electroless nickel plating (3-5μm)
- Pressure rating: 0.05-1.0 MPa (7-145 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal type: Precision-machined metal-to-metal seal with optional NBR O-ring
- Flow capacity: 120 NL/min @ 0.5 MPa
- Weight: 12g ±0.5g
- Dimensions: 30mm(L) × 8mm(OD) × M5 thread depth 5mm
- Vibration resistance: ≤20 m/s² (ISO 10816-3 compliant)
- Corrosion resistance: 96hrs salt spray test (ASTM B117)
Ultra-compact pneumatic fitting featuring cold-forged brass construction for maximum density and leak-proof performance. The precision-machined M5 internal threads with 6H tolerance class ensure perfect alignment in miniature pneumatic systems. Nickel plating provides enhanced wear resistance against repeated connections.
- Micro-pneumatic circuit branching in semiconductor wafer handlers
- Sensor air supply connections on CNC machining centers
- Modular pneumatic manifolds for laboratory automation
- High-cycle robotic end effector tooling
- Medical device gas delivery systems
Installation protocol:
Apply thread sealant (LOCTITE 577 recommended) to male threads only.
Torque to 0.8-1.2 N·m using crowfoot wrench. Perform pressure test
at 1.5× operating pressure after installation.
