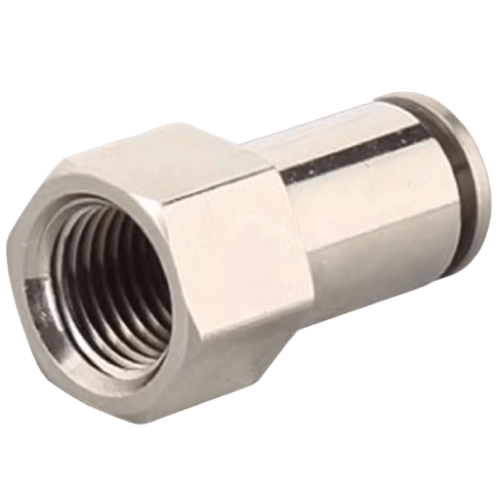

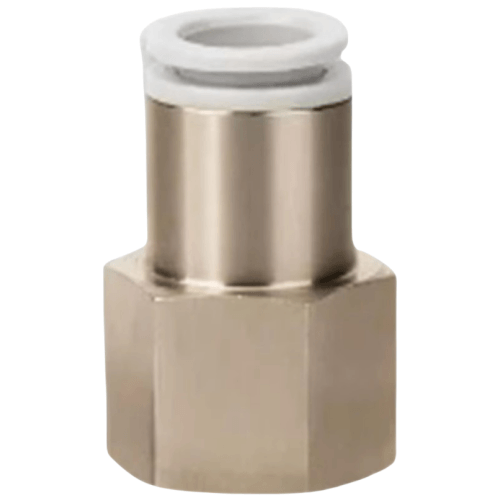

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT801
AirTAC X-APCFT801 Full Brass Female Threaded Straight Connector Specifications
- Model: X-APCFT801
- Type: Female-to-Female Straight Thread Adapter
- Material: C3604 Free-cutting Brass (RoHS compliant)
- Thread Standard: BSPP (G-thread) / NPT Optional
- Thread Size: 1/8" (R1/8, 1/8NPT)
- Pressure Rating: 0.5-1.6 MPa (72-232 PSI)
- Temperature Range: -20℃ to 120℃
- Surface Treatment: Electroplated Nickel (5-8μm thickness)
- Seal Type: Metal-to-Metal Seal (No O-ring required)
- Tightening Torque: 12-15 N·m Max
- Weight: 18.5±0.5g
- Dimensions: 24mm(Length) × 12mm(Width) × 12mm(Height)
- Thread Engagement Depth: 9mm (Minimum)
- Fluid Compatibility: Air, Water, Hydraulic Oil (ISO VG32-68)
Precision-machined brass connector with dual female threads, featuring a hexagonal center for tool grip. The nickel-plated surface provides enhanced corrosion resistance in humid environments. Engineered for zero-leak performance through tapered thread design, requiring proper thread sealant application (PTFE tape or liquid sealant recommended).
- Pneumatic system branch line connections
- Instrumentation tubing in process control
- Hydraulic test bench manifold assemblies
- Compressed air dryer piping networks
- Coolant line extensions in CNC machinery
Installation protocol:
Apply sealant to male threads only, avoiding contamination of internal passages.
Hand-tighten plus 1.25-1.75 turns with wrench. Maximum 45° adjustment after seal contact.
| Property | Property Value |
|---|---|
| sku | X-APCFT801 |
