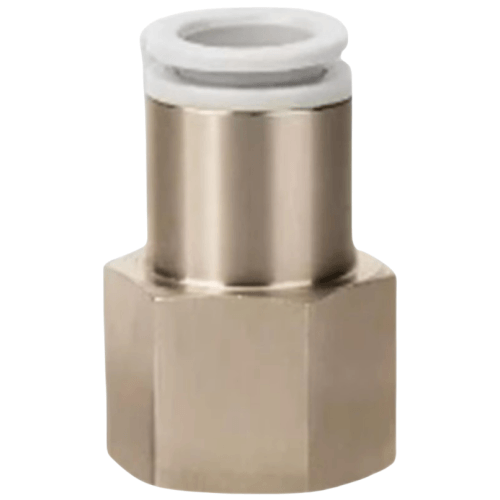

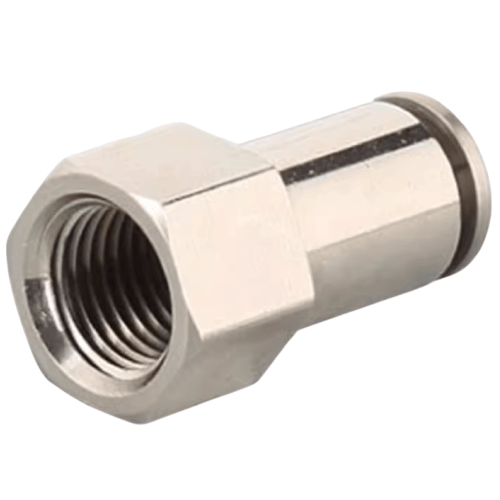

Airtac X-APCFT Connector - Full Brass Female Thread Straight Through X-APCFT803
AirTAC X-APCFT803 Full Brass Female Thread Straight Fitting Specifications
- Model: X-APCFT803
- Type: Female threaded straight connector (male-male)
- Material: C3604 free-cutting brass (lead-free compliant)
- Thread Standard: PT1/8 (BSPP) internal threads both ends
- Pressure Rating: 1.5 MPa (217 psi) maximum working pressure
- Temperature Range: -20℃ to 120℃ (-4°F to 248°F)
- Surface Treatment: Electroplated nickel finish (3-5μm thickness)
- Weight: 18g ±0.5g
- Dimensions: 20mm(L) × 12mm(W) × 12mm(H)
- Thread Engagement Depth: 8mm minimum
- Certifications: RoHS compliant, REACH SVHC-free
- Proof Pressure: 2.25 MPa (tested for 3 minutes)
Precision-machined brass pneumatic connector featuring dual female threads with leak-resistant parallel (BSPP) sealing. The nickel plating enhances corrosion resistance in humid environments while maintaining excellent thermal conductivity. Designed for permanent installations requiring zero maintenance.
- Compressed air line distribution blocks
- Pneumatic cylinder port adapters
- Instrumentation gas sampling systems
- Industrial cooling water manifolds
- Beverage dispenser CO₂ line connections
- CNC machine tool lubrication circuits
Installation note:
Apply liquid thread sealant (LOCTITE 577 recommended) to external mating threads.
Tightening torque should not exceed 15 N·m. Use two wrenches to prevent tube distortion during assembly.
| Property | Property Value |
|---|---|
| sku | X-APCFT803 |
