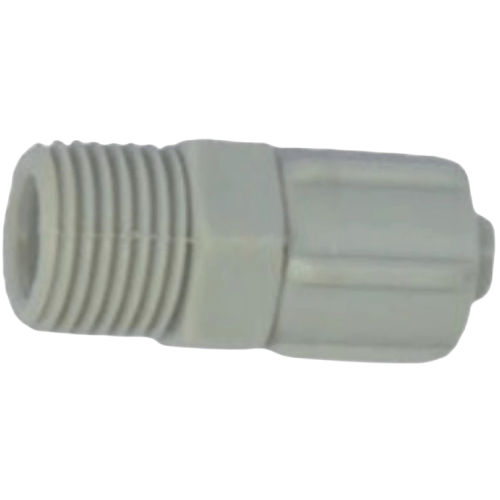

Airtac X-APCS Adapter - Straight Through Lock Nut All-Plastic Connector X-APCS802
$2.80
Regular price
$10.30
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCS802
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCS802 Straight-Through Locknut Full Plastic Connector Specifications
- Model: X-APCS802
- Type: Straight-through threaded locknut connector (non-rotating design)
- Thread standard: PT1/8 (BSPP) female threads both ends
- Material: POM (Polyoxymethylene) reinforced polymer body
- Seal ring: EPDM rubber (standard), optional NBR/FKM
- Operating pressure: 0.2–1.0 MPa
- Burst pressure: ≥3.0 MPa
- Temperature range: -20℃ to 60℃
- Flow rate: 150 NL/min @ 0.5 MPa
- Weight: 8.5g ±0.3g
- Dimensions: 30mm(L) × 12mm(OD) × 8mm(ID)
- Thread engagement depth: 7mm per side
- Color: Light gray (RAL 7035 equivalent)
- Chemical resistance: Resists oils, weak acids, and alkalis
Ultra-lightweight pneumatic connector featuring dual O-ring retention system for vibration resistance. The tapered thread design prevents plastic deformation during installation. Compatible with PU/Nylon tubing (4mm–6mm OD). Includes integrated dust caps for port protection.
Typical Applications:
- Modular pneumatic circuit assembly in cleanrooms
- Robotic end-effector tooling connections
- Low-pressure coolant line junctions
- Medical device pneumatic manifolds
- IoT sensor air sampling systems
Installation protocol:
Hand-tighten until snug (1.2–1.5 N·m torque max). Use backup wrench on hex flats
during tubing insertion. Perform pressure test at 1.25× operating pressure after assembly.
| Property | Property Value |
|---|---|
| sku | X-APCS802 |
