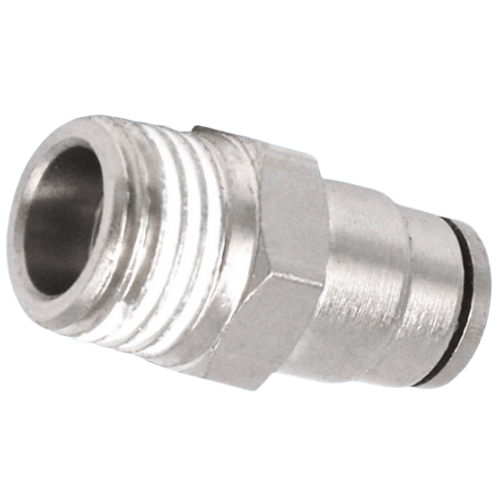

Airtac X-APCT Full Copper Straight Thread Connector X-APCT1001
AirTAC X-APCT1001 Full Brass Threaded Straight Connector Specifications
- Model: X-APCT1001
- Type: Pneumatic straight-through connector
- Material: C3604 free-cutting brass (lead-free compliant)
- Thread standard: Metric (M5×0.8) & BSPP (G1/8) dual-standard compatible
- Pressure rating: 0.05-1.5 MPa (7-217 PSI)
- Temperature range: -20℃ to 120℃ (continuous operation)
- Surface treatment: Electroless nickel plating (3-5μm thickness)
- Thread engagement: ≥3 full turns for leak-proof connection
- Weight: 12.5g ±0.3g
- Dimensions: 24mm(Length) × 12mm(Width) × 12mm(Height)
- Torque limit: 0.8-1.2 N·m (installation torque)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-machined brass connector featuring dual-thread compatibility for flexible pneumatic system integration. The hexagonal body design allows tool-assisted tightening, while the nickel plating enhances corrosion resistance in humid environments. Rated for 500,000+ connection cycles with maintained sealing integrity.
- Modular pneumatic circuit assembly
- Sensor/valve manifold interconnections
- Compressed air distribution blocks
- Robotic end-effector pneumatic lines
- Medical gas equipment tubing systems
Installation note:
Apply 1.5-2 wraps of PTFE tape on male threads prior to assembly.
Avoid over-tightening - stop rotation when firm resistance is felt.
Compatible with ISO 1179-2 and JIS B0203 standards.
| Property | Property Value |
|---|---|
| sku | X-APCT1001 |
