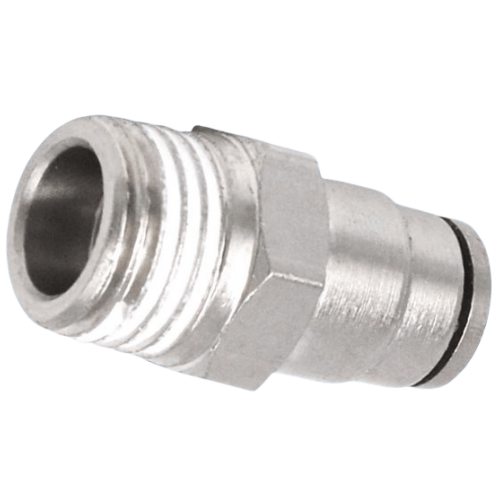

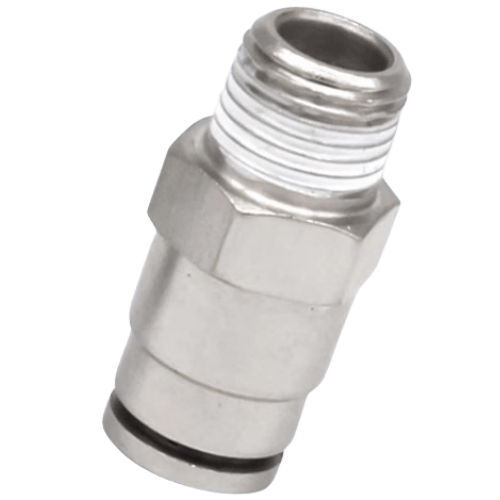

Airtac X-APCT Full Copper Straight Thread Connector X-APCT1003
AirTAC X-APCT1003 Brass Threaded Straight Connector Specifications
- Model: X-APCT1003
- Material: Lead-free brass (CW617N)
- Thread Standard: BSPP (Parallel) / Optional NPT on request
- Thread Size: 1/8" (G1/8)
- Max Working Pressure: 1.5 MPa (217 psi)
- Temperature Range: -20℃ to 120℃
- Surface Treatment: Electroplated nickel (3-5μm) + chromate passivation
- Seal Type: Metal-to-metal sealing (no O-ring required)
- Torque Resistance: ≤25 N·m installation torque
- Weight: 18.5±0.5g
- Dimensions: 22mm(Length) × 12mm(Width) × 12mm(Height)
- Flow Coefficient (Cv): 0.15
- Pressure Drop: ≤0.02 MPa @ 0.5 MPa inlet pressure
- Vibration Resistance: 10-2000Hz, 1.5mm amplitude
Precision-machined brass straight connector with leak-proof design, featuring dual-purpose ports for both BSPP and metric thread compatibility (adapter sleeves available). The electroless nickel plating ensures corrosion resistance in humid environments while maintaining precise dimensional tolerances (±0.05mm).
- Pneumatic manifold block interconnections
- Compressed air line distribution in packaging machinery
- Vacuum system plumbing for automated assembly lines
- Instrumentation gas lines in semiconductor fabs
- Hydraulic test bench fittings (non-petroleum fluids)
Installation protocol:
Apply 2-3 wraps of PTFE tape clockwise on male threads.
Use torque wrench for final 1/4 turn after hand-tightening.
Avoid thread sealants containing silicone or ammonia.
