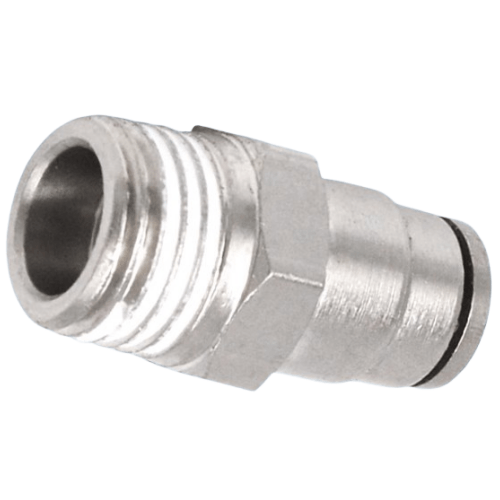

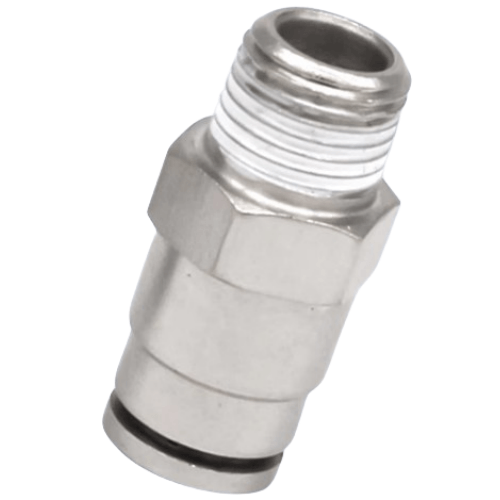

Airtac X-APCT Full Copper Straight Thread Connector X-APCT1004
AirTAC X-APCT1004 Full Brass Threaded Straight Fitting Specifications
- Model: X-APCT1004
- Material: Lead-free brass (RoHS compliant)
- Thread Standard: Metric/PT/NPT optional (M5×0.8, PT1/8, NPT1/8)
- Connection Type: Straight-through design
- Port Quantity: 2 ports (male thread both ends)
- Pressure Rating: 0.02-1.5 MPa (operating), 2.0 MPa burst pressure
- Temperature Range: -5℃ to 120℃ (with NBR seals)
- Seal Material: Standard NBR, optional FKM (Viton®)
- Surface Treatment: Electroless nickel plating (3-5μm thickness)
- Leakage Rate: ≤0.1 NL/min @ 0.5 MPa
- Weight: 14.8±0.5g
- Dimensions: 20mm (L) × 8mm (Dia.) × 18mm (Hex width)
- Certification: ISO 8434-1, ISO 1179-1
Precision-machined brass fitting with dual-port straight configuration, featuring corrosion-resistant nickel plating and vacuum-sealed packaging for oxidation prevention. The 60° cone seat design ensures bubble-tight sealing under vibration. Compatible with pneumatic and low-viscosity hydraulic systems.
- Pneumatic cylinder port connections
- Compressed air distribution manifolds
- Medical gas line assemblies
- Industrial robot tool changers
- Refrigeration system service ports
Installation guidelines:
Apply PTFE tape clockwise on male threads (2-3 wraps). Torque limit: 3.5-4.2 N·m.
Avoid overtightening to prevent thread deformation. Pressure test recommended after installation.
