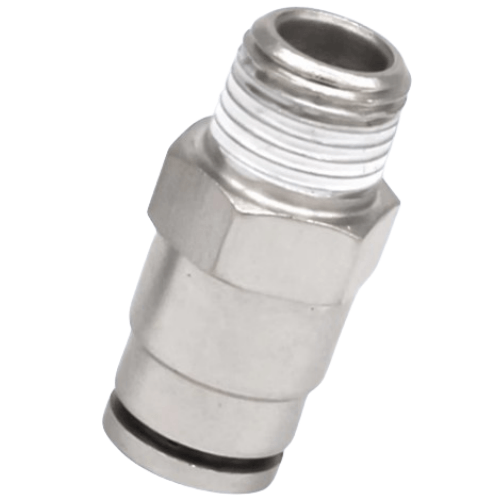

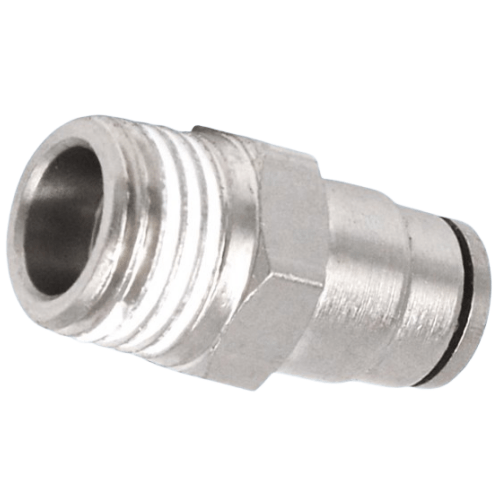

Airtac X-APCT Full Copper Straight Thread Connector X-APCT1202
AirTAC X-APCT1202 Full Brass Threaded Straight Connector Specifications
- Model: X-APCT1202
- Material: Lead-free brass (CW617N)
- Thread standard: G1/8 (ISO 1179 compliant)
- Thread direction: Straight through (male to male)
- Surface treatment: Electro-nickel plated (5-8μm thickness)
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 120℃
- Proof pressure: 3.0 MPa
- Burst pressure: ≥6.0 MPa
- Weight: 28g ±1g
- Dimensions: 32mm(L) × 12.5mm(W) × 12.5mm(H)
- Sealing type: Metal-to-metal seal (tapered thread)
- Compatibility: Air, inert gases, water (non-corrosive media)
- Certifications: RoHS compliant, CE marked
Precision-machined brass connector featuring double hexagon wrench flats for secure installation. The electro-nickel plating provides enhanced corrosion resistance exceeding 96hrs neutral salt spray test. Optimized flow path design reduces turbulence with 0.8mm smooth inner bore transition.
- Pneumatic system branch line connections
- Instrumentation gas sampling lines
- Coolant line extensions in CNC machinery
- Vacuum system component interfacing
- Hydraulic test bench manifold assemblies
Installation guidelines:
Apply PTFE tape on male threads using clockwise wrapping direction.
Tighten to 12-15N·m torque limit. Avoid overtightening beyond 1.5 turns
after hand-tight position. Perform pressure test at 1.1× system pressure
after installation.
- 50,000+ pressure cycles at rated conditions
- Re-torque check recommended every 2,000 operating hours
- Inspect thread deformation annually using GO/NO-GO gauge
| Property | Property Value |
|---|---|
| sku | X-APCT1202 |
