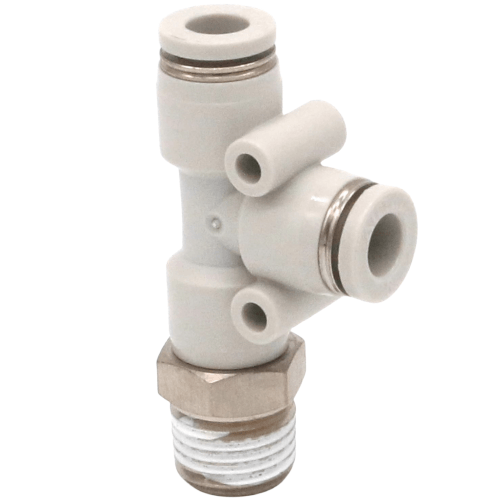

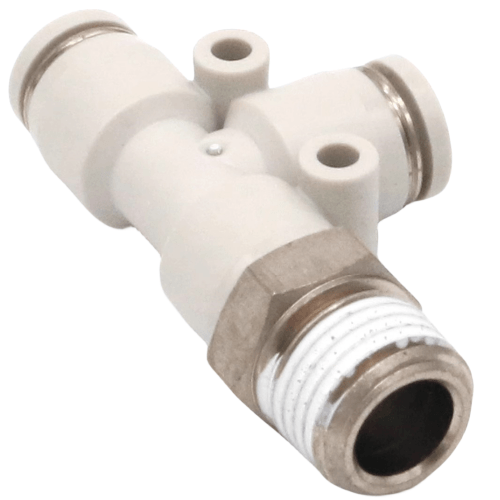

Airtac X-APD Connector - T-Type Threaded Tee X-APD12M12
$5.34
Regular price
$12.84
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APD12M12
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APD12M12 T-Port Threaded Tee Fitting Specifications
- Model: X-APD12M12
- Type: T-shaped pneumatic tee connector
- Thread standard: Metric fine thread (M12×1.0)
- Material: Brass with nickel plating
- Seal material: NBR (Nitrile rubber)
- Pressure rating: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃
- Port configuration: 3-way equal diameter
- Surface hardness: ≥HV200
- Thread tolerance: 6g/6H
- Weight: 38±2g
- Dimensions: 24mm (L) × 24mm (W) × 28mm (H)
- Certification: ISO 6150-B standard
Precision-machined T-connector featuring triple-sealed threads and anti-vibration design. The 60° cone seating ensures leak-free connections in dynamic pneumatic systems. Compatible with most ISO 1179-2 compliant components.
Typical Applications:
- Branch line creation in compact pneumatic circuits
- Sensor mounting in automated assembly lines
- Air distribution in packaging machinery
- Vacuum system plumbing for CNC fixtures
- Medical gas line distribution systems
Installation guidance:
Apply 2-3 drops of pneumatic sealant (Loctite 577 recommended) on threads before assembly.
Tighten with 15-18 N·m torque using crowfoot wrench. Avoid overtightening - maximum 1.5 full turns after hand-tight.
Environmental resistance:
Withstands intermittent oil mist (ISO 8573-1:2010 Class 4) and mild chemical vapors.
Not recommended for continuous water immersion or chlorine-based media.
| Property | Property Value |
|---|---|
| sku | X-APD12M12 |
