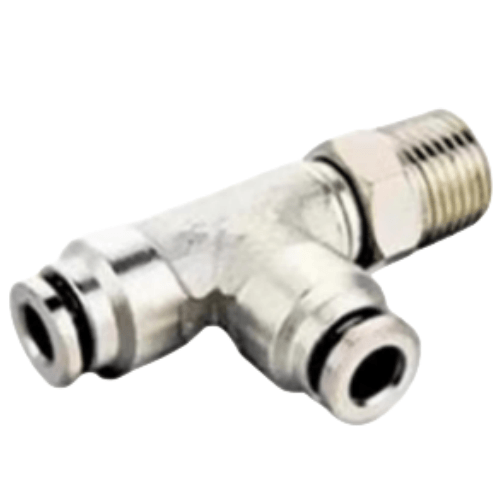

Airtac X-APDT Adapter - Full Brass Threaded Side Tee X-APDT1003
AirTAC X-APDT1003 Full Brass Threaded Side Tee Fitting Technical Details
- Model: X-APDT1003
- Type: Pneumatic side tee connector (equal distribution)
- Material: Lead-free brass (RoHS compliant)
- Thread Standard: BSPP (G) / NPT optional
- Port Size: 1/8" (M5×0.8 thread available)
- Max Working Pressure: 1.5 MPa (217 psi)
- Temperature Range: -20℃ to 120℃ (-4°F to 248°F)
- Surface Treatment: Electroless nickel plating (3-5μm)
- Seal Type: Integrated O-ring (NBR standard)
- Weight: 48g ±2g
- Dimensions: 28mm(L) × 20mm(W) × 20mm(H)
- Torque Limit: 1.2-1.5 N·m during installation
Triple-port brass manifold designed for precision branching in pneumatic circuits. Features corrosion-resistant construction with dual sealing surfaces (thread + O-ring) for leak-free operation in high-vibration environments. The compact 60° angled ports enable space-saving plumbing configurations.
- Modular pneumatic tool manifolds
- CNC machine air line distribution
- Packaging equipment sensor air supply branching
- Laboratory instrument gas flow splitting
- Robotic actuator control circuits
Installation protocol:
Apply 1.5-2 wraps of PTFE tape on male threads (BSPP) or use liquid sealant for NPT.
Avoid overtightening - stop rotation when primary seal contact is achieved.
Compatible with ISO 15407-1 compliant tubing.
