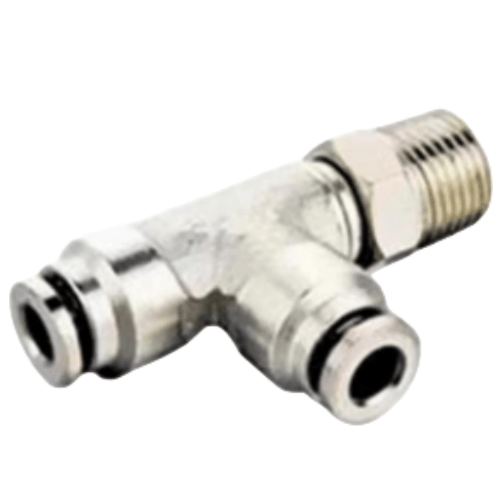

Airtac X-APDT Adapter - Full Brass Threaded Side Tee X-APDT1202
AirTAC X-APDT1202 Full Brass Threaded Side Tee Fitting Specifications
- Model: X-APDT1202
- Material: Lead-free brass (CW617N)
- Thread standard: Metric (M5×0.8) or BSPP (G1/8") optional
- Tube compatibility: 4mm OD polyurethane/nylon tubing
- Max working pressure: 1.0 MPa (145 psi)
- Burst pressure: ≥3.0 MPa (435 psi)
- Temperature range: -20℃ to 120℃ (continuous)
- Surface treatment: Electroless nickel plating (5-8μm)
- Seal material: HNBR O-rings (70±5 Shore A)
- Weight: 28g ±1g
- Dimensions: 19.5mm(L) × 18.2mm(W) × 22.4mm(H)
- Flow coefficient (Cv): 0.12
- Leakage rate: ≤3 bubbles/min under 0.5 MPa air pressure
- Certification: RoHS compliant, REACH SVHC-free
Precision-machined brass tee connector with triple sealing zones, designed for stable flow distribution in pneumatic systems. Features anti-vibration grooves and 360° rotatable ports for flexible plumbing arrangements. Passes 50,000-cycle endurance test with <0.2% flow rate degradation.
- Branch line creation in automated assembly line manifolds
- Tooling fixture air circuit expansions
- Medical device pneumatic control systems
- Food processing equipment (NSF-GF approved lubricants used)
- Semiconductor manufacturing gas distribution
Installation protocol:
Hand-tighten plus 1/4 turn with wrench (max torque 2.5N·m). Apply thread sealant only on male threads.
Perform pressure test at 1.5× operating pressure for 15 minutes post-installation.
