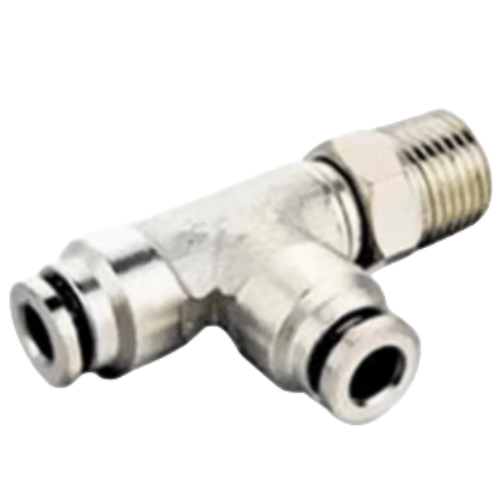

Airtac X-APDT Adapter - Full Brass Threaded Side Tee X-APDT1203
AirTAC X-APDT1203 Full-Brass Threaded Side Tee Fitting Specifications
- Model: X-APDT1203
- Type: Side entry tee connector (3-way)
- Material: Lead-free brass CW617N (RoHS compliant)
- Thread standard: Metric (M5×0.8 female threads on all ports)
- Pressure rating: 0.2–1.5 MPa (29–218 PSI)
- Temperature range: -20℃ to 120℃ (continuous use)
- Port configuration: 1x axial through port + 2x 90° side ports
- Surface treatment: Electroless nickel plating (5-8μm thickness)
- Seal material: EPDM O-rings (standard), optional NBR available
- Proof pressure: 2.25 MPa (326 PSI)
- Burst pressure: ≥3.0 MPa (435 PSI)
- Weight: 54g ±2g
- Dimensions: 24.5mm(L) × 20mm(W) × 17.8mm(H)
- Flow coefficient (Cv): 0.15
- Vibration resistance: 10–55Hz, 1.5mm amplitude
High-density brass tee connector designed for precision pneumatic circuits requiring multi-directional flow distribution. Features triple-sealed threads with integrated backup rings for vibration resistance. The 90° side ports enable compact manifold designs while maintaining full flow capacity. Compatible with ISO 15407-1 standard fittings.
- Modular pneumatic valve island assemblies
- Robotic end-effector air supply distribution
- CNC machine tool coolant line manifolds
- Packaging machine clamp circuit branching
- Laboratory gas chromatography systems
Installation protocol:
Apply 1.5–2 wraps of PTFE tape on male threads (do not over-tighten beyond 1.5 N·m).
For vertical installations, orient side ports horizontally to prevent condensate pooling.
Torque sequence: Tighten primary axial port first, then alternate between side ports.
| Property | Property Value |
|---|---|
| sku | X-APDT1203 |
