Airtac X-APDT Adapter - Full Brass Threaded Side Tee X-APDT6M5
AirTAC X-APDT6M5 Full Copper Threaded Side Tee Fitting Specifications
- Model: X-APDT6M5
- Material: Lead-free brass (CW617N)
- Thread Standard: Metric M5×0.8 (ISO 228-1 compliant)
- Connection Type: Push-to-connect (One-touch fitting)
- Port Configuration: 3-way T-shape design
- Operating Pressure: 0.05-1.0 MPa
- Temperature Range: -5℃ to 100℃
- Seal Material: HNBR (Hydrogenated Nitrile) O-rings
- Surface Treatment: Electroless nickel plating (3-5μm)
- Flow Rate: 120 NL/min (at 0.5 MPa)
- Weight: 18.5g ±0.5g
- Dimensions: 24mm(L) × 19mm(W) × 19mm(H)
- Certification: RoHS compliant
- Color: Natural brass with metallic finish

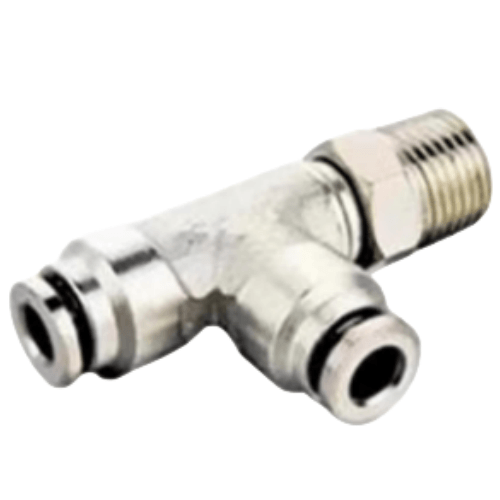

Precision-engineered T-connector featuring corrosion-resistant construction and leak-proof design. The hexagonal body allows secure wrench tightening (recommended torque: 1.2-1.5N·m). Compatible with Ø4mm OD pneumatic tubing (PU/Nylon). Includes internal flow restrictor for balanced pressure distribution.
- Modular pneumatic circuit branching in automation lines
- Compressed air distribution in CNC machinery
- Vacuum system manifold connections
- Medical gas line installations
- Robotic end-effector pneumatic networks
Installation note:
Apply PTFE tape on male threads when connecting to non-matching ports.
Ensure tubing insertion depth reaches 15mm minimum. Perform monthly
leakage checks using soap bubble test method.
| Property | Property Value |
|---|---|
| sku | X-APDT6M5 |
