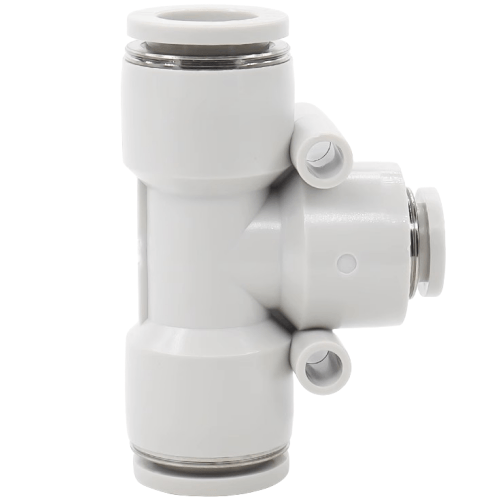

Airtac X-APEG Adapter - T-Type Reducing Tee X-APEG64
$3.32
Regular price
$10.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APEG64
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APEG T-Series Reducing Tee Connector X-APEG64 Technical Details
- Model: X-APEG64-T
- Type: T-shaped reducing tee with male threads
- Main port size: G1/4 (BSPP)
- Branch port size: G1/8 (BSPP)
- Material: Nickel-plated brass (Standard) / Stainless steel (Optional)
- Pressure rating: 0.05-1.0 MPa (operating), 1.5 MPa burst pressure
- Temperature range: -20℃ to 80℃
- Thread tolerance: ISO 1179 Class B
- Surface roughness: Ra ≤3.2μm (internal passages)
- Leakage rate: ≤0.1 NL/min @ 0.5 MPa
- Weight: 320g ±5% (brass version)
- Dimensions: 64mm(L) × 64mm(W) × 50mm(H)
- Seal compatibility: Works with NBR, FKM, or PTFE seals
- Vibration resistance: 10-2000Hz @ 15m/s²
Precision-engineered flow distribution component with stepped internal channels to minimize turbulence. Features anti-rotation hex flats for secure wrench tightening and corrosion-resistant plating. The asymmetric design optimizes space utilization in compact pneumatic manifolds.
Typical Applications:
- Pneumatic circuit branching in automation cells
- Coolant line distribution in CNC machinery
- Vacuum system manifolds for pick-and-place units
- Pressure gauge multiplexing stations
- Compressed air tool hookups
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (clockwise wrap direction).
Torque to 14-16 N·m using backup wrench on hex flats. Avoid overtightening
which may distort flow channels. Perform pressure test at 110% max operating
pressure during commissioning.
| Property | Property Value |
|---|---|
| sku | X-APEG64 |
