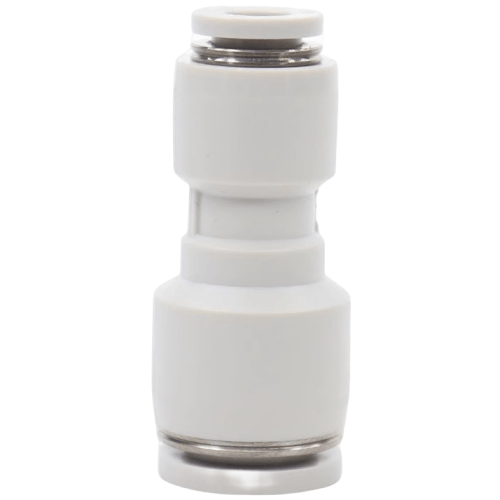

Airtac X-APG Adapter - Reducing Straight Fitting X-APG1210
$3.43
Regular price
$10.93
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APG1210
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APG1210 Reducing Straight Fitting Detailed Specifications
- Model: X-APG1210
- Type: Metric thread reducing union (male to female)
- Thread standards: ISO 6149 (Metric)
- Port sizes: M12×1.5 (male) → M10×1.5 (female)
- Material: Stainless steel 303 (standard) / Optional brass C3604
- Pressure rating: 1.5 MPa (217 PSI) maximum
- Temperature range: -20℃ to 150℃ (with NBR seals)
- Seal material: NBR (standard) / Optional FKM for high temp
- Surface treatment: Electroless nickel plating (3-5μm)
- Weight: 18.5g ±0.5g
- Dimensions: 25mm (total length) × 17mm (hex width) × 12mm (male thread length)
- Installation torque: 2.0-3.5 Nm (brass) / 4.0-6.0 Nm (stainless)
- Compatibility: Works with Ø6-Ø8mm tubing (requires matching ferrules)
Precision-machined reducer coupling designed for stepped pneumatic line connections in confined spaces. Features anti-vibration grooves and leak-proof double-seal structure (primary metal-to-metal seal + secondary O-ring). Meets ISO 16030 pneumatic fitting standards.
Typical Applications:
- Port reduction for compact pneumatic cylinders (e.g., SDA/MAL series)
- Instrumentation line adapters in semiconductor equipment
- Hydraulic sensor connection interfaces
- Robotic end-effector pneumatic tool conversions
- Medical gas line manifold systems
Installation protocol:
Apply 242 Loctite® on male threads before assembly. Torque in stages -
first snug-fit at 30% spec value, then final torque. Always use backup wrench
on hex base to prevent swivel deformation.
Fluid compatibility note:
Not recommended for phosphate ester fluids or chlorinated solvents.
For steam applications, specify high-temp variant with FKM seals
(X-APG1210-HT).
| Property | Property Value |
|---|---|
| sku | X-APG1210 |
