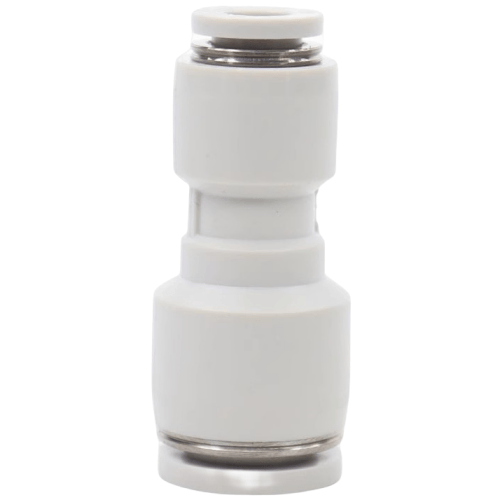

Airtac X-APG Adapter - Reducing Straight Fitting X-APG84
$3.32
Regular price
$10.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APG84
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APG84 Reducing Straight Connector Technical Details
- Model: X-APG84
- Type: Step-down straight pneumatic fitting (male-to-male)
- Material: Nickel-plated brass (base), PPS resin (collet)
- Primary port: G1/4 (BSPP thread)
- Reduced port: G1/8 (BSPP thread)
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -5℃ to 80℃ (with NBR seals)
- Seal type: NBR O-ring (standard), optional FKM
- Tube compatibility: Φ8mm (1/4") to Φ4mm (1/8") nylon/PU tubing
- Surface treatment: Electrostatic epoxy coating (black)
- Weight: 28g ±2g
- Dimensions: 42mm(L) × 16.5mm(Dia) × 16.5mm(Dia)
- Vibration resistance: 10-2000Hz, 15G acceleration
- Certification: RoHS compliant, ISO 6150-B standard
Precision-engineered flow transition connector featuring dual-stage sealing (radial + axial) for leak-free performance. The tapered collet design enables 360° rotatable tube adjustment post-installation. Rated for 500,000+ duty cycles with maintained torque retention.
Primary Applications:
- Pneumatic circuit pressure zoning in automation cells
- Tool changer interfaces on CNC machines
- Branch line reductions in packaging machinery
- Medical gas line adapters (oxygen/nitrogen systems)
- Robotic end-effector pneumatic supply conversions
Installation protocol:
Hand-tighten until snug (1.5-2Nm torque), then apply 1/4 turn with wrench.
Always install larger port toward pressure source. Perform pressure test
at 1.25× operating PSI for 10 minutes before commissioning.
| Property | Property Value |
|---|---|
| sku | X-APG84 |
