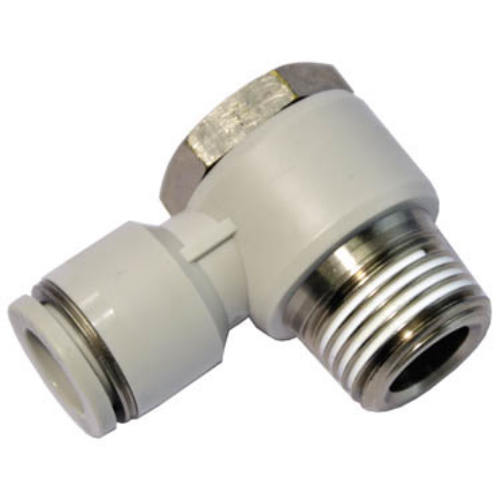

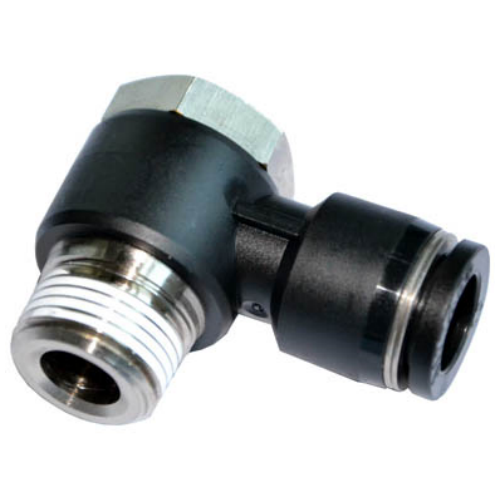

Airtac X-APH Hex Head Elbow Adapter X-APH8M10
$3.68
Regular price
$11.18
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APH8M10
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APH8M10 Hexagon Elbow Joint Specifications
- Model: X-APH8M10
- Type: Swivel-type hexagon elbow joint (male thread)
- Thread specification: M10×1.25 (external)
- Material: Nickel-plated brass body / NBR seals
- Operating pressure: 0.05–0.7 MPa
- Proof pressure: 1.05 MPa
- Temperature range: -20℃ to 80℃
- Flow capacity: 550 L/min (at 0.5 MPa)
- Hex size: 16mm wrench flat
- Weight: 32g ±1g
- Dimensions: 50mm(L) × 16mm(W) × 25mm(H)
- Surface treatment: Electroless nickel plating (5-8μm)
- Installation torque: 3-5 Nm (recommended with thread sealant)
Precision-machined pivot joint with 30° swivel capability for flexible tubing routing. Features dual O-ring seals and anti-vibration locking collar. Rated for 500,000+ cycles at max pressure. Compatible with air, inert gases, and vacuum systems.
Typical Applications:
- Robotic arm end effector pneumatic connections
- CNC machine tool coolant line adapters
- Semiconductor equipment gas distribution
- Packaging machine rotary union interfaces
- Automated test bench manifold systems
Installation note:
Apply 2-3 drops of PTFE-based thread sealant on male threads before assembly.
Tighten using crowfoot wrench to prevent ovalization. Max 15° misalignment compensation.
| Property | Property Value |
|---|---|
| sku | X-APH8M10 |
