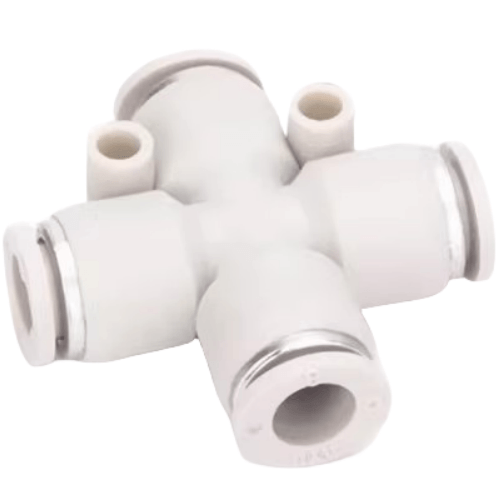

Airtac X-APHZ Cross Reducing Connector X-APHZ1210
AirTAC X-APHZ1210 Cross Reducing Tee Fitting Technical Details
- Model: X-APHZ1210 (Cross Type)
- Thread Standards: Metric/PT/BSPP compatible
- Inlet Port: PT1/8 (R1/8)
- Outlet Ports: PT1/10 (R1/10) x4 (3 axial + 1 perpendicular)
- Material: Lead-free brass CW617N (RoHS compliant)
- Surface Treatment: Electroless nickel plating (5-8μm thickness)
- Pressure Range: 0.05-1.0 MPa (7-145 PSI)
- Temperature Range: -20℃ to 80℃ (static air)
- Seal Material: HNBR rubber (70±5 Shore A hardness)
- Flow Coefficient: Cv≈0.15 (at 6 bar)
- Weight: 43g ±2g
- Dimensions: 30mm(L) × 20mm(W) × 20mm(H) (body only)
- Port Spacing: 10.5mm between adjacent outlets
- Vibration Resistance: ≤20 m/s² (ISO 10816-3)
- Leakage Rate: <3 bubbles/min (ISO 6952 test standard)
Four-way compact pneumatic manifold designed for flow distribution in confined spaces. Features stepped bore design (1.8mm inlet → 1.2mm outlets) for controlled pressure drop. Nickel-plated anti-corrosion surface withstands humid environments. Pre-installed O-rings enable tool-free tubing connection.
- Multi-axis pneumatic gripper synchronization
- PCB assembly machine air distribution hubs
- Medical device pneumatic circuit branching
- Automated test equipment sensor air supply
- Food packaging machine pneumatic networks
Installation guidelines:
Apply 242 Loctite® on male threads (not on sealing surfaces).
Tighten with 12-15 N·m torque using 14mm open-end wrench.
For vertical mounting, orient flow arrow upward.
Requires 5μm filtered dry air to prevent orifice clogging.
| Property | Property Value |
|---|---|
| sku | X-APHZ1210 |
