Airtac X-APHZ Cross Reducing Connector X-APHZ64
AirTAC X-APHZ64 Cross Reducer Four-Way Fitting Specifications
- Model: X-APHZ64
- Type: Cross-shaped reducer fitting with 4 ports
- Material: Anodized aluminum alloy (A6063-T5)
- Thread Standards: Metric (M5×0.8) x4 ports
- Reduction Ratio: 1:1.5 (Input/Output)
- Max Working Pressure: 1.0 MPa
- Burst Pressure: ≥3.0 MPa
- Temperature Range: -20℃ to 80℃
- Weight: 85g ±2g
- Dimensions: 42mm(L) × 42mm(W) × 42mm(H)
- Surface Hardness: HV 120-150
- Seal Type: Integrated O-ring groove (NBR seal included)
- Flow Rate: 350 NL/min @0.5MPa
- Compatibility: Air, inert gases (Non-lubricated)

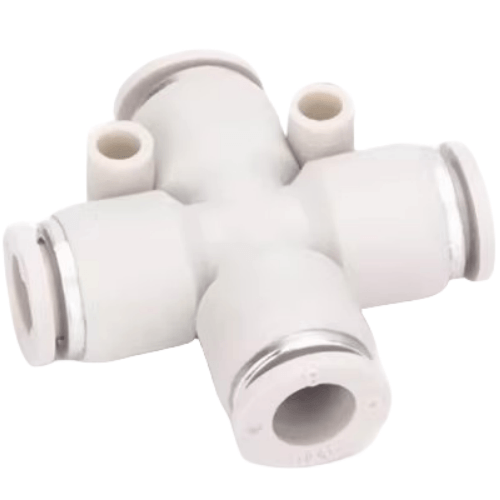

Precision-machined cross connector with tapered flow paths for pressure stabilization in multi-branch pneumatic systems. Features anti-vibration knurling and corrosion-resistant anodized finish. Designed for space-constrained installations requiring flow distribution with minimal pressure drop.
- Multi-axis pneumatic tool synchronization
- Modular automation workstation manifolds
- Robotic gripper control circuits
- CNC machine tool pneumatic distribution hubs
- Laboratory gas mixing stations
Installation Guidelines:
Apply 0.5-0.8 N·m torque during assembly. Use thread sealant only on male ports.
Align flow arrows with system direction. Test at 0.2MPa below max pressure during commissioning.
