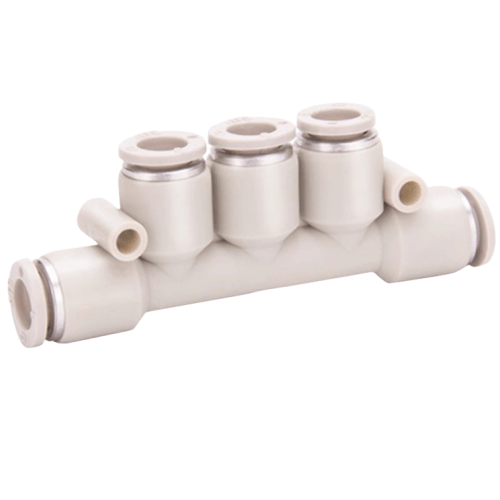

Airtac X-APK Connector-5-Way X-APK8
$3.89
Regular price
$11.39
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APK8
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APK8 Five-Way Quick Coupling Specifications
- Model: X-APK8
- Type: ISO 15217/ISO 14743 compliant 5-port pneumatic quick connector
- Thread standards: G1/8, NPT1/8, or M5x0.8 (configurable)
- Material: Nickel-plated brass body + PPS resin lever
- Operating pressure: 0.05-1.0 MPa
- Burst pressure: ≥3.0 MPa
- Temperature range: -20℃ to 80℃ (with silicone seals)
- Flow rate: 1,200 NL/min (@0.5 MPa)
- Leakage: ≤0.1 NL/min (under 0.5 MPa)
- Weight: 82g ±2g
- Dimensions: 48mm(L) × 34mm(W) × 32mm(H)
- Port configuration: 1 input (P), 2 outputs (A/B), 2 exhausts (EA/EB)
- Seal material options: NBR (standard), FKM (-20℃~120℃), EPDM (-35℃~100℃)
High-flow five-way pneumatic coupling with dust-resistant lever lock mechanism, featuring 360° rotatable ports for flexible piping arrangements. The double O-ring design ensures zero-leak performance even under vibration conditions. Compatible with ISO 15407-1 actuators.
Typical Applications:
- Pneumatic cylinder direction control in SMC/ISO valve blocks
- Modular assembly systems for industrial robots
- Plastic injection molding machine air circuits
- High-cycle automated test equipment
- Food-grade pneumatic systems (with EPDM seals)
Installation protocol:
Apply 2-3 drops of pneumatic oil (ISO VG32) to lever mechanism monthly.
For vertical mounting, orient lever axis horizontally to prevent accidental disengagement.
| Property | Property Value |
|---|---|
| sku | X-APK8 |
