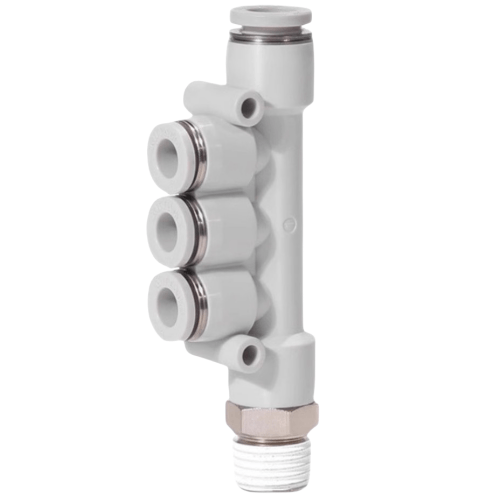

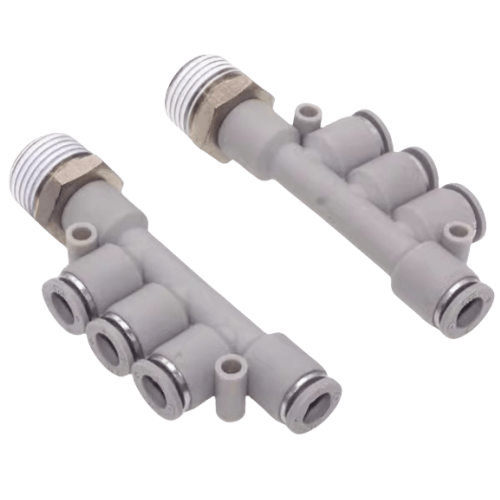

Airtac X-APKB Connector - Threaded 5 Port X-APKB604
AirTAC X-APKB604 Threaded Five-Way Connector Specifications
- Model: X-APKB604
- Type: 5-port threaded manifold (PT/NPT compatible)
- Body material: Anodized aluminum alloy (A6061-T6)
- Thread standard: G1/8 (ISO228) / 1/8 NPT optional
- Port configuration: 1 inlet + 4 outlets (cross flow pattern)
- Operating pressure: 0.2–1.0 MPa (29–145 psi)
- Burst pressure: ≥3.0 MPa (435 psi)
- Temperature range: -20℃ to 80℃
- Seal material: HNBR rubber (fluorine-free)
- Surface hardness: HV0.3 ≥15°
- Installation torque: 10–15 N·m (7.4–11.1 lb-ft)
- Weight: 75±5g
- Dimensions: 25mm(W) × 25mm(D) × 30mm(H)
- Port spacing: 10mm center-to-center
- Corrosion resistance: 96hr salt spray test passed
- Protection rating: IP54 (as installed system)
Multi-port flow distributor with precision-machined internal channels, designed for compact pneumatic circuit integration. Features dual-thread compatibility and anti-vibration grooves for secure tubing retention. The tapered thread design (Rc) ensures leak-free connections without requiring thread sealant.
- Modular pneumatic control blocks in automation cells
- Air distribution hubs for CNC machine tooling
- Multi-actuator synchronization systems
- Compact robotic end-effector plumbing
- Laboratory pneumatic test benches
Installation note:
Apply 2-3 wraps of PTFE tape on male threads at 135° offset from port axis.
Use torque wrench for even pressure distribution - over-tightening may deform sealing surfaces.
| Property | Property Value |
|---|---|
| sku | X-APKB604 |
