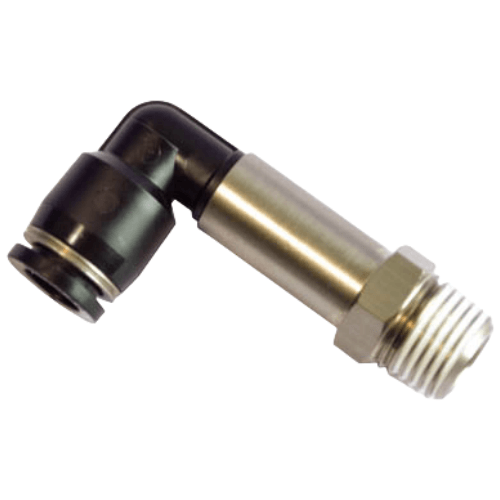

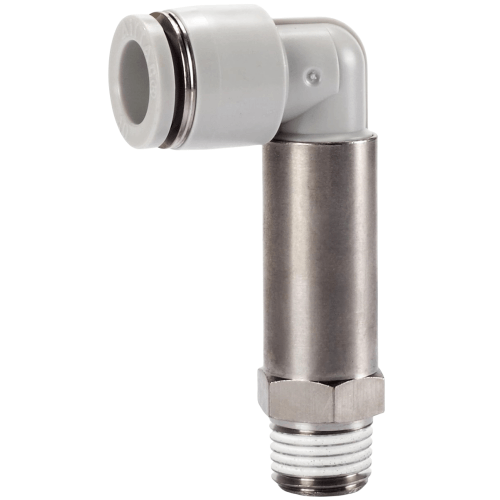

Airtac X-APLL Connector - L-Type Extended Thread 2-Way X-APLL6M6
AirTAC X-APLL6M6 L-Type Extended Thread Elbow Fitting Technical Details
- Model: X-APLL6M6
- Type: L-shaped extended thread two-way connector
- Thread specification: M6×1.0 (male thread extension)
- Material: Brass with nickel plating (CuZn39Pb3)
- Seal material: NBR (Nitrile rubber)
- Pressure range: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃
- Installation torque: 1.5-2.0 N·m
- Surface hardness: HV200±20
- Protection rating: IP40
- Certifications: RoHS compliant, REACH registered
- Weight: ~18g
- Dimensions: 40mm(L) × 25mm(W) × 15mm(H)
- Package quantity: 50pcs/box (bulk packed)
Precision-engineered L-shaped pneumatic connector featuring extended male threads for enhanced engagement depth in constrained spaces. The 90° elbow design optimizes airflow routing while minimizing pressure drop. Nickel-plated brass construction ensures corrosion resistance in humid environments, compatible with most industrial lubricants and coolants.
- Pneumatic tool air line extensions
- CNC machine pneumatic circuit branching
- Packaging machinery sensor connections
- Medical equipment gas line interfaces
- Automated assembly line pneumatic grippers
Installation note:
Apply 1.5-2 wraps of PTFE tape on male threads. Avoid cross-threading during installation - hand-tighten
for 3 full rotations before final torque application. Maximum recommended re-use cycles: 5 times.
| Property | Property Value |
|---|---|
| sku | X-APLL6M6 |
