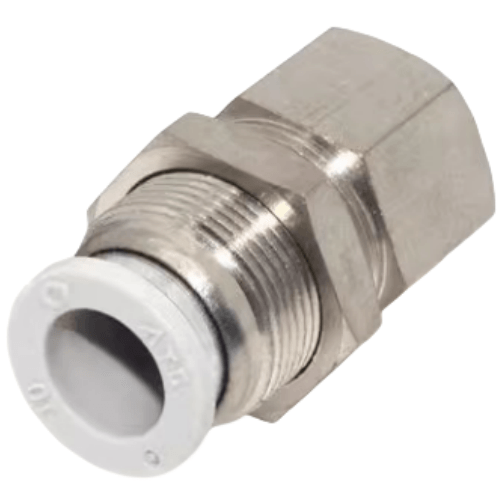

Airtac X-APMF Straight Internal Thread Through Panel Connector X-APMF1002
AirTAC X-APMF1002 Straight Threaded Bulkhead Fitting Technical Details
- Model: X-APMF1002
- Type: Straight through internal thread bulkhead fitting
- Thread Standard: 1/8" BSPP (G1/8) female threads both ends
- Material: Brass CW617N with nickel plating
- Pressure Range: 0.05-1.5 MPa (7-217 PSI)
- Temperature Range: -20℃ to 80℃ (-4°F to 176°F)
- Seal Material: NBR (Nitrile) O-ring
- Surface Treatment: Electroless nickel plating (5-8μm thickness)
- Torque Limit: 3.5 N·m max during installation
- Weight: 48g ±2g
- Dimensions: 32mm(L) × 18mm(W) × 18mm(H)
- Fluid Compatibility: Air, inert gases, mild hydraulic fluids
- Vibration Resistance: ≤5G @ 10-2000Hz
- Certification: RoHS compliant
Heavy-duty bulkhead connector designed for panel-mounted pneumatic/hydraulic connections. Features dual sealing surfaces with precision-machined threads and corrosion-resistant plating. The stepped flange design prevents over-tightening and ensures 360° leak-proof performance in high-vibration environments.
- Machine tool pneumatic distribution panels
- Hydraulic control system interface plates
- Compressed air manifold blocks in packaging lines
- Laboratory equipment pressure port transitions
- Robotic arm pneumatic circuit junctions
Mounting protocol:
Use PTFE tape or liquid thread sealant on male threads.
Tighten using opposing wrenches - one on hex body (19mm) and
one on locknut (22mm). Avoid overtightening beyond specified torque.
| Property | Property Value |
|---|---|
| sku | X-APMF1002 |
