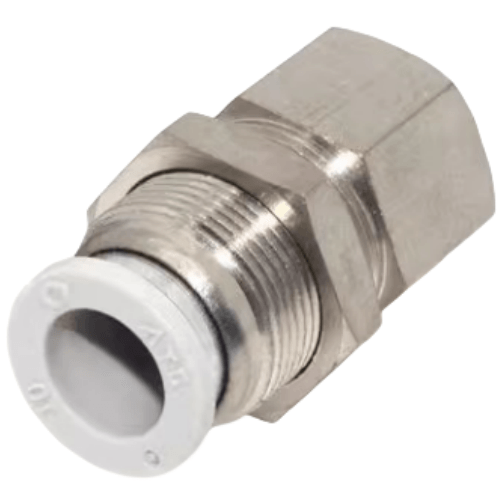

Airtac X-APMF Straight Internal Thread Through Panel Connector X-APMF1003
AirTAC X-APMF1003 Bulkhead Fitting - Straight Through Internal Thread Specifications
- Model: X-APMF1003
- Type: Bulkhead union with female threads (straight through)
- Thread Standard: Metric (M5×0.8 female both ends)
- Material: Stainless steel 303 (corrosion-resistant)
- Seal Material: HNBR (Hydrogenated Nitrile) O-ring
- Max Working Pressure: 1.5 MPa (217 psi)
- Temperature Range: -30℃ to 120℃
- Surface Treatment: Electropolished finish
- Port Configuration: G1/8 through-port
- Panel Thickness Compatibility: 1-6mm
- Torque Limit: 2.5 N·m max
- Weight: 18g ±0.5g
- Dimensions: 22mm(Ø) × 25mm(H) × 15mm(Flange width)
- Certifications: RoHS compliant, REACH tested
A precision-machined bulkhead fitting designed for permanent panel mounting in pneumatic systems. Features zero dead volume design with full-flow internal passage, ideal for maintaining consistent pressure in measurement applications. The 360° rotatable flange allows flexible orientation adjustment post-installation.
- Manifold-to-panel connections in modular pneumatic systems
- Pressure sensor/transmitter installations
- Cleanroom equipment requiring particle-free connections
- Vacuum system interfaces (compatible with 10^-3 Torr)
- Medical gas panel distribution systems
Installation protocol:
Use backup wrench on hex flats during assembly. Apply thread sealant only on male threads,
never on O-ring surfaces. Maximum 2 full rotations after seal contact. Pressure test required
after 24hr curing time for anaerobic sealants.
| Property | Property Value |
|---|---|
| sku | X-APMF1003 |
