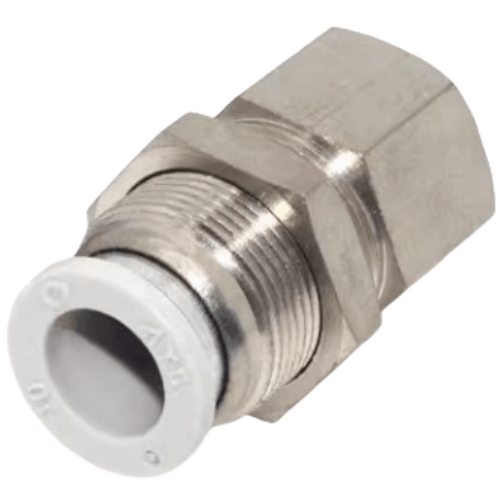

Airtac X-APMF Straight Internal Thread Through Panel Connector X-APMF1201
AirTAC X-APMF1201 Straight Threaded Bulkhead Fitting Technical Details
- Model: X-APMF1201
- Type: Straight-through internal thread bulkhead fitting
- Thread Standard: Metric (M5×0.8 internal thread both ends)
- Material: Nickel-plated brass body
- Temperature Range: -20℃ to 80℃
- Pressure Range: 0~1.5 MPa (217.5 PSI)
- Seal Material: NBR (Nitrile) O-ring
- Installation Torque: 1.2~1.5 N·m recommended
- Compliance: RoHS compliant
- Weight: 25g ±1g
- Dimensions: 18mm(Ø) × 22mm(H) × 18mm(Flange width)
Dual-purpose bulkhead connector designed for panel mounting in pneumatic systems. Features through-hole design for bidirectional flow with anti-vibration flange and self-locking thread structure. The nickel plating provides corrosion resistance in humid environments while maintaining electrical conductivity for grounding.
- Pneumatic control cabinet panel penetrations
- Modular machinery connections
- Air brake system bulkhead transitions
- Laboratory equipment air line routing
- Robotic arm pneumatic interface panels
Installation protocol:
Use PTFE tape on male threads only. Torque wrench required for precise installation.
Maximum panel thickness: 5mm. Always install O-ring toward pressure source side.
| Property | Property Value |
|---|---|
| sku | X-APMF1201 |
