Airtac X-APMF Straight Internal Thread Through Panel Connector X-APMF1202
$4.67
Regular price
$12.17
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APMF1202
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APMF1202 Straight Threaded Bulkhead Fitting Specifications
- Model: X-APMF1202
- Type: Straight-through internal thread bulkhead fitting
- Thread standard: Metric (M) / BSPP (G) options
- Thread size: PT1/2 (R1/2) with M18×1.5 panel thread
- Material: Nickel-plated brass body
- Seal material: NBR (Nitrile) O-rings
- Max working pressure: 1.0 MPa (145 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Flow coefficient (Cv): 0.8
- Weight: 48g ±2g
- Dimensions: 30mm (L) × 18mm (W) × 22mm (H)
- Panel thickness compatibility: 1-5mm
- Protection rating: IP54 (when properly installed)

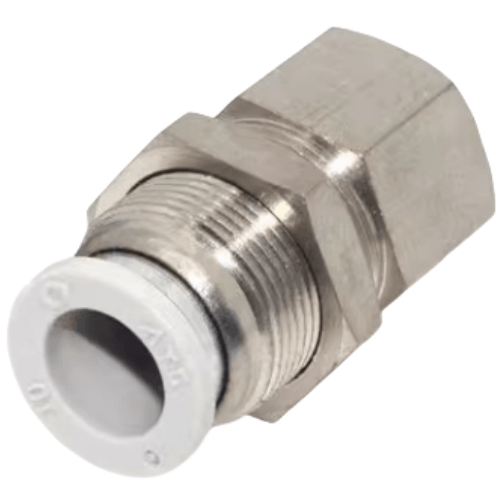

Robust bulkhead connector designed for through-panel pneumatic line installations. Features dual O-ring seals (dynamic and static) for leak-proof performance in vibration-prone environments. The hexagonal collar allows tool-assisted tightening with 19mm wrench flats.
Typical Applications:
- Distributing air supply through control cabinet walls
- Modular pneumatic system interconnections
- CNC machine tool pneumatic distribution blocks
- Automated assembly line manifold systems
- Semiconductor fab equipment gas line routing
Installation protocol:
Apply 1.5-2 wraps of PTFE tape on male threads (excluding sealing zones).
Use backup wrench on hex body during final torque (max 14 N·m).
Perform pressure test at 1.5× operating pressure after installation.
| Property | Property Value |
|---|---|
| sku | X-APMF1202 |
