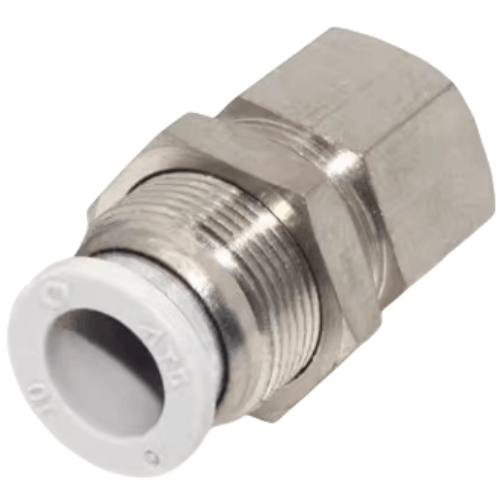

Airtac X-APMF Straight Internal Thread Through Panel Connector X-APMF1203
AirTAC X-APMF1203 Straight Threaded Bulkhead Fitting Specifications
- Model: X-APMF1203
- Type: Straight Through Internal Thread Bulkhead Fitting
- Thread Standard: Metric (M12×1.5 internal threads both ends)
- Material: Nickel-plated Brass Body
- Seal Material: NBR (Nitrile) O-Ring
- Pressure Range: 0.05-1.0 MPa
- Temperature Range: -20℃ to 80℃ (continuous use)
- Peak Temperature Resistance: 120℃ (intermittent)
- Installation: Bulkhead Mounting with Locknut
- Surface Treatment: Electroless Nickel Plating (5-8μm)
- Weight: 38g ±2g
- Dimensions:
- Total Length: 32mm
- Thread Engagement Length: 10mm (both sides)
- Hex Size: 19mm AF (Across Flats)
- Panel Thickness Range: 1-5mm (compatible)
- Certification: RoHS Compliant
Heavy-duty bulkhead fitting designed for secure pneumatic line passthrough in panel-mounted applications. Features dual internal threads with anti-vibration locknut and corrosion-resistant plating. The tapered seat design ensures leak-free sealing even under pressure fluctuations. Rated for 500,000+ duty cycles.
- Industrial control cabinet pneumatic distribution
- CNC machine tool lubrication line connections
- Robotic arm interface panel installations
- Semiconductor equipment gas supply passthrough
- Hydraulic system sensor mounting adapters
Installation protocol:
Apply thread sealant to male threads (PTFE tape recommended).
Use 14-16 N·m torque during assembly.
Always install O-ring toward pressure source side.
- Cv Value: 0.12
- Effective Flow Area: 2.8 mm²
- Max Air Flow: 350 NL/min @ 0.6 MPa
| Property | Property Value |
|---|---|
| sku | X-APMF1203 |
