Airtac X-APMF Straight Internal Thread Through Panel Connector X-APMF1204

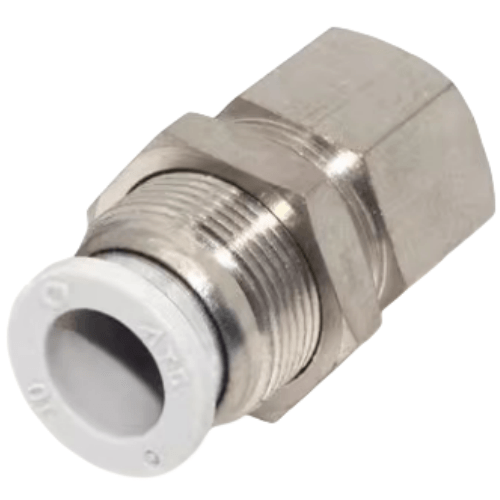

AirTAC X-APMF1204 Straight Through Internal Thread Bulkhead Fitting
- Model: X-APMF1204
- Type: Bulkhead fitting with straight-through internal threads
- Thread specification: 1/4" BSPP (G1/4)
- Material: Brass with nickel plating
- Seal material: NBR (Nitrile) O-ring
- Pressure rating: 0.3-1.5 MPa (43.5-217.5 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Installation thickness: Panel thickness 1-5mm
- Hex size: 19mm wrench flat
- Weight: 28g ±2g
- Dimensions: 32mm(Length) × 19mm(Width) × 19mm(Height)
- Surface roughness: Ra ≤3.2μm
- Certification: RoHS compliant
Heavy-duty bulkhead connector designed for secure panel-mounted pneumatic connections. Features dual sealing structure with integrated O-ring and metal-to-metal contact, ensuring leak-free performance in high-vibration environments. The through-hole design allows easy alignment during installation while maintaining minimal flow restriction.
- Pneumatic control panel installations
- CNC machine tool air supply interfaces
- Industrial robot end effector connections
- Compressed air distribution systems
- Test bench manifold assemblies
Installation guidance:
Apply 360° sealant on panel contact surface. Tighten with torque ≤15N·m.
Use backup wrench on hex flats during assembly. Recommended to install
with flow arrow pointing downstream.
| Property | Property Value |
|---|---|
| sku | X-APMF1204 |
