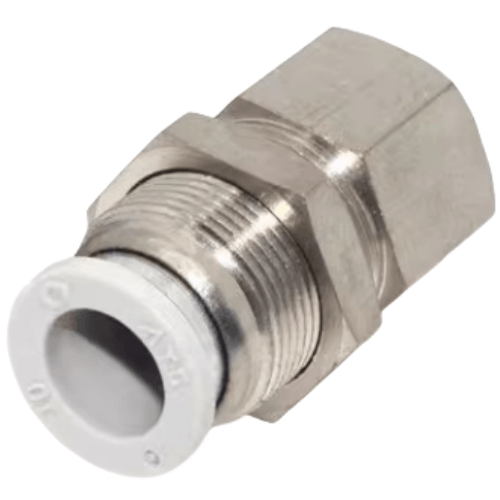

Airtac X-APMF Straight Internal Thread Through Panel Connector X-APMF1604
AirTAC X-APMF1604 Bulkhead Fitting - Straight Threaded Through Panel Specifications
- Model: X-APMF1604
- Type: Straight thread bulkhead fitting (male x female)
- Thread standard: BSPP (G thread)
- Size designation: 1604 (M16×1.5 outer thread / G1/4" inner thread)
- Material: C3604 lead-free brass
- Surface treatment: Electro-nickel plated (5-8μm)
- Pressure rating: 0.05-1.0 MPa
- Temperature range: -5℃ to 100℃ (operating), -20℃ to 120℃ (storage)
- Installation thickness: 1-6mm panel compatible
- Seal type: Integrated O-ring (NBR material)
- Torque specification: 14-16 N·m installation torque
- Weight: 38g ±2g
- Dimensions: 29mm(OD flange) × 34mm(L) × 21mm(Hex size)
Through-panel hydraulic/pneumatic connector featuring dual sealing structure with flange-mounted O-ring and metal-to-metal thread contact. The reverse-snap design prevents accidental disassembly, while the 360° rotatable hex nut enables tool-free adjustment during installation. Compatible with ISO 1179-2 and JIS B0203 standards.
- Modular pneumatic manifold systems
- Hydraulic power unit panel penetrations
- CNC machine tool lubrication lines
- Semiconductor equipment gas distribution
- Mobile machinery hydraulic interfaces
Installation protocol:
Apply 243 thread sealant on male threads (DO NOT use Teflon tape).
Tighten until flange contacts panel surface, then give 1/4 additional turn.
Maximum 3 reuses recommended for O-ring integrity.
- Air/N2 (lubricated or non-lubricated)
- Hydraulic oils (ISO VG32-68)
- Water-glycol mixtures (≤50% concentration)
- Incompatible with halogenated hydrocarbons and strong acids
| Property | Property Value |
|---|---|
| sku | X-APMF1604 |
