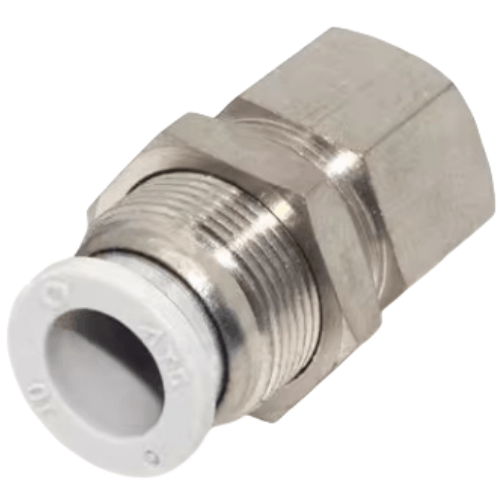

Airtac X-APMF Straight Internal Thread Through Panel Connector X-APMF401
AirTAC X-APMF401 Straight Threaded Bulkhead Fitting Specifications
- Model: X-APMF401
- Type: Straight-through internal threaded bulkhead fitting
- Material: Brass with nickel plating
- Thread standard: G1/8 (ISO228-1 compliant)
- Through-hole diameter: 12.5mm ±0.2mm
- Pressure rating: 0.2-10 bar (3-145 psi)
- Temperature range: -5℃ to 80℃
- Seal material: NBR (Nitrile rubber)
- Surface hardness: HV0.3 ≥210
- Weight: 35g ±2g
- Dimensions: 32mm(L) × 16mm(W) × 16mm(H)
- Mounting panel thickness: 1-5mm
- Torque specification: 15-20 N·m
Dual-seal bulkhead connector featuring anti-vibration design with 360° rotatable body for flexible installation alignment. The through-wall structure minimizes pressure drop while maintaining leak-proof performance under cyclic loading. Electroplated surface provides corrosion resistance in humid environments.
- Pneumatic control cabinet pass-through connections
- CNC machine tool air line distribution
- Automated production line manifold systems
- Semiconductor equipment gas delivery
- Hydraulic test bench instrumentation
Installation note:
Apply PTFE tape on male threads before assembly. Use backup wrench on hex flats during tightening to prevent rotational stress.
Maximum 3 reuses recommended for sealing reliability.
