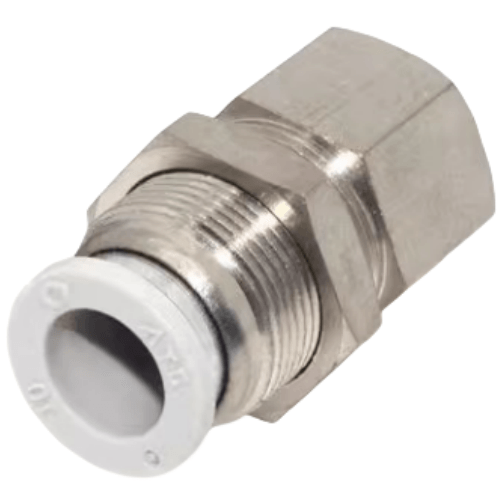

Airtac X-APMF Straight Internal Thread Through Panel Connector X-APMF603
AirTAC X-APMF603 Straight Through Internal Thread Bulkhead Fitting
- Model: X-APMF603
- Type: Straight-through bulkhead fitting with internal threads
- Thread Standard: Metric (M5×0.8 internal threads both ends)
- Material: Cold forged brass (CuZn39Pb3) with nickel plating
- Seal Type: Integrated O-ring (NBR 70±5 Shore A)
- Pressure Rating: 0.2-1.5 MPa (29-218 PSI)
- Temperature Range: -20℃ to 150℃ (continuous operation)
- Installation Thickness: Compatible with panel thickness 1-5mm
- Surface Finish: Ra ≤1.6μm on sealing surfaces
- Weight: 18.5±0.5g
- Dimensions: 22mm(Length) × 12mm(Width) × 12mm(Height)
- Torque Specification: 1.2-1.5 N·m max during installation
- Certification: RoHS compliant, REACH SVHC-free
High-density brass bulkhead connector designed for panel-mounted pneumatic/hydraulic systems. Features dual internal threads for secure through-panel connections, with precision-machined sealing surfaces that eliminate leakage under vibration. The nickel plating provides corrosion resistance in humid environments.
- Modular pneumatic control cabinets
- Hydraulic power unit manifold interfaces
- Industrial robot cable carrier pass-throughs
- CNC machine tool lubrication line connections
- Semiconductor equipment vacuum line transitions
Installation guidance:
Use alignment jig for multi-port installations. Apply thread sealant only on male threads,
avoiding contact with O-ring surfaces. Tighten alternately in star pattern when connecting
multiple fittings to prevent panel warpage.
| Property | Property Value |
|---|---|
| sku | X-APMF603 |
