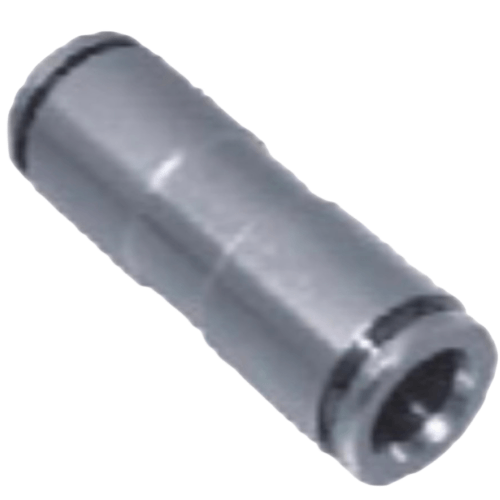

Airtac X-APUT Fitting - Full Copper Straight X-APUT1210
AirTAC X-APUT1210 All-Copper Straight Through Connector Specifications
- Model: X-APUT1210
- Material: Lead-free brass (CuZn39Pb0.5)
- Surface treatment: Electroplated nickel (8-12μm thickness)
- Thread standard: Metric M12×1.0 & UNF 7/16-20 dual-thread design
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥6 MPa
- Temperature range: -20℃ to 120℃
- Tube compatibility: Φ10mm PU/Nylon (9.5-10.5mm OD)
- Seal material: HNBR O-ring (70±5 Shore A)
- Vibration resistance: 10-2000Hz, 15G acceleration
- Weight: 68±3g
- Dimensions: 45mm(Length) × 32mm(Width) × 28mm(Height)
- Certifications: RoHS compliant, REACH SVHC-free
High-density forged brass connector with dual-thread compatibility, featuring precision-machined sealing surfaces for zero-leak performance. The corrosion-resistant nickel plating ensures durability in humid environments. Optimized flow path design reduces air turbulence (pressure drop <0.02MPa @1MPa).
- Pneumatic tool quick-connect systems
- CNC machine tool air supply lines
- Industrial compressor manifold assemblies
- Automated packaging equipment air circuits
- Semiconductor cleanroom pneumatic controls
Installation guide:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten beyond 25N·m).
For vertical downward tube routing, use support clamps at 300mm intervals.
Compatibility note:
Not recommended for use with phosphate ester hydraulic fluids or chlorinated solvents.
Always perform pressure testing at 1.25× working pressure after installation.
| Property | Property Value |
|---|---|
| sku | X-APUT1210 |
