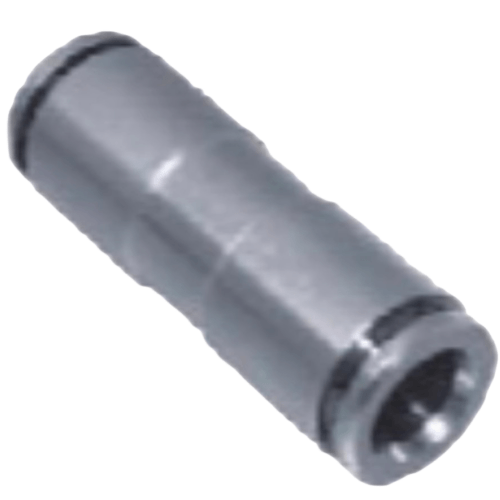

Airtac X-APUT Fitting - Full Copper Straight X-APUT4
AirTAC X-APUT4 Brass Straight Through Connector Specifications
- Model: X-APUT4
- Type: Full-brass straight-through pneumatic connector
- Thread standard: Metric (M5×0.8) & PT1/4 (BSPP) dual-standard compatible
- Material: Lead-free brass alloy (CuZn39Pb3)
- Surface treatment: Electroplated nickel (5-8μm thickness)
- Working pressure: 0.05-1.0 MPa
- Burst pressure: ≥4.0 MPa
- Temperature range: -20℃ to 120℃
- Seal material: NBR (Nitrile) O-ring
- Weight: 48g ±2g
- Dimensions: 35mm(L) × 12mm(Dia.) body / 16mm hex width
- Installation torque: 1.5-2.0 Nm (recommended with thread sealant)
- Flow coefficient (Cv): 0.15
- Certification: RoHS compliant / ISO 9001 manufacturing
Precision-machined brass connector featuring dual-thread compatibility for flexible system integration. The through-hole design maintains consistent flow characteristics while enabling visual inspection of media flow. Nickel plating enhances corrosion resistance in humid environments. Sealing surface roughness Ra ≤1.6μm ensures leak-free operation.
- Pneumatic cylinder port adapters
- Industrial automation manifold blocks
- Compressed air distribution lines
- Vacuum system plumbing
- Medical gas equipment (non-oxygen service)
- CNC machine tool pneumatic circuits
Installation note:
Apply thread sealant to male threads only. Avoid overtightening -
tighten until snug then add ¼ turn. Compatible with PTFE tape
(max 2 wraps). Not recommended for pulsating pressures above 15Hz.
Contains nickel coating - avoid use in oxygen systems or chemical
environments with pH <4.5. Always blow out ports before connection
to remove machining debris.
| Property | Property Value |
|---|---|
| sku | X-APUT4 |
