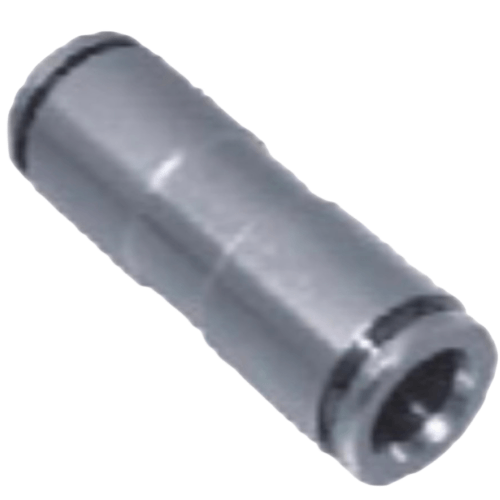

Airtac X-APUT Fitting - Full Copper Straight X-APUT806
$5.44
Regular price
$12.94
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APUT806
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APUT806 Full Brass Straight Fitting Technical Details
- Model: X-APUT806
- Type: Straight-through pneumatic connector
- Material: Lead-free brass (CuZn39Pb3)
- Thread standard: Metric (M5×0.8) / Optional NPT/PT
- Port size: M5 (1/8") nominal
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥6 MPa (870 psi)
- Temperature range: -20℃ to 120℃
- Surface treatment: Electro-nickel plated (5-8μm)
- Seal type: Metal-to-metal sealing (tapered thread)
- Weight: 18.5g ±0.3g
- Dimensions: 22mm(L) × 10mm(Dia) × 8mm(Hex)
- Torque requirement: 1.2-1.5 N·m (install)
- Certification: RoHS compliant
Precision-machined brass connector featuring zero-leak design with 60° conical sealing surface. The hexagonal body includes wrench flats for secure installation in confined spaces. Compatible with PU/Nylon tubing (4-6mm OD).
Industrial Applications:
- Pneumatic tool air supply lines
- Automated assembly line manifolds
- CNC machine air/oil mist lubrication systems
- Robotic actuator connections
- Compressed air instrumentation ports
Installation guide:
Apply 2-3 wraps of PTFE tape clockwise on male threads.
Avoid over-tightening - stop rotation when 1.5mm gap remains between mating surfaces.
Pressure Test Data:
- 10,000 pressure cycles @ 1.0 MPa: 0% leakage
- Vibration resistance: 10-2000Hz @ 15g acceleration
- Salt spray test: 96hrs @ 5% NaCl solution
