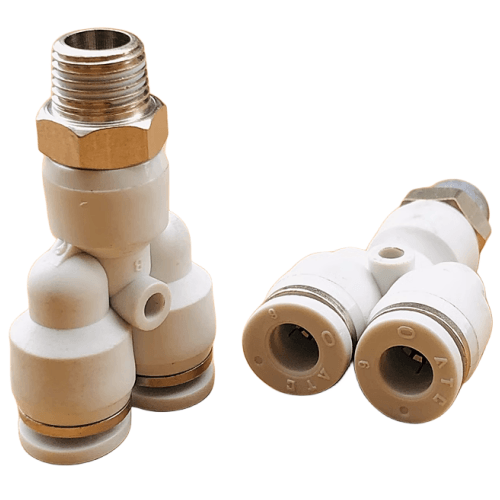

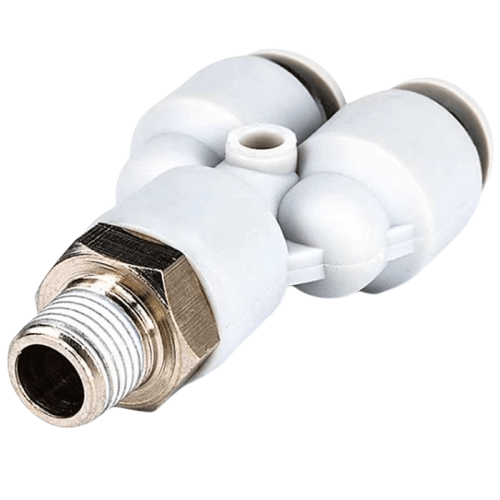

Airtac X-APX Adapter - Y-Type Threaded Tee X-APX4M8
$3.53
Regular price
$11.03
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APX4M8
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APX4M8 Y-Type Threaded Tee Fitting Specifications
- Model: X-APX4M8
- Type: Y-shaped 3-way brass pneumatic connector
- Thread type: M8×1.0 metric fine thread (male ends)
- Material: Nickel-plated brass body
- Seal material: NBR (Nitrile) O-rings
- Operating pressure: 0.05-1.0 MPa
- Temperature range: -5℃ to 80℃ (with NBR seals)
- Port configuration: Three M8 ports at 120° angles
- Surface treatment: Electroless nickel plating (5-8μm)
- Pressure test: 1.5 MPa air tightness test
- Weight: 18.5±0.5g
- Dimensions: 30mm(L) × 18mm(W) × 18mm(H)
- Certifications: ISO 9001, RoHS compliant
Precision-machined Y-connector with triple sealing grooves, designed for stable air distribution in compact pneumatic systems. Features anti-vibration thread design and chemical-resistant plating. Maximum flow rate: 120 NL/min at 0.5 MPa.
Typical Applications:
- Branch line connections in robotic gripper systems
- Modular pneumatic circuit prototyping
- Air brake system junctions in light machinery
- Vacuum generator multi-circuit splitting
- Medical device pneumatic control units
Installation tip:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten - recommended torque 1.2-1.5 N·m).
For vertical installations, position primary flow port downward to prevent moisture accumulation.
| Property | Property Value |
|---|---|
| sku | X-APX4M8 |
