Description

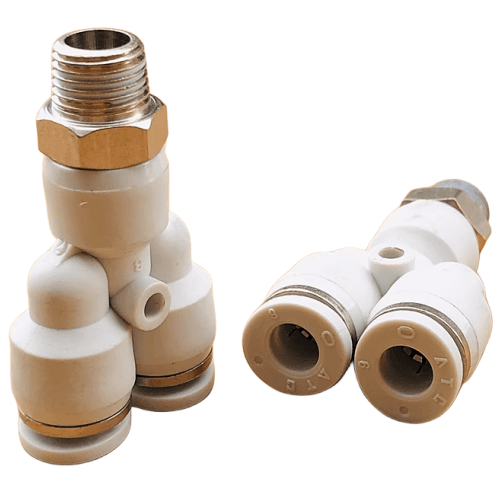

AirTAC X-APX804 Y-Type Threaded Tee Fitting Specifications
- Model: X-APX804
- Type: Y-shaped 3-way connector (equal distribution)
- Thread standard: BSPP (G thread) / BSPT (R thread) / NPT (optional)
- Port size: 1/8" (8mm nominal)
- Material: Lead-free brass (CuZn39Pb3) with nickel plating
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 120℃
- Seal type: Integrated O-ring (NBR material)
- Thread engagement depth: 8±0.5mm
- Surface hardness: ≥HV200
- Weight: 82g ±2g
- Dimensions: 50mm (L) × 32mm (W) × 28mm (H)
- Compliance: RoHS compliant
Precision-machined flow divider with corrosion-resistant finish, designed for stable air distribution in compact pneumatic systems. Features triple-helix thread design for vibration resistance and 360° adjustable orientation. Compatible with ISO 1179-2 and DIN 3852 standards.
Typical Applications:
- Modular pneumatic manifolds in assembly lines
- Robotic gripper air supply distribution
- CNC machine tool coolant control systems
- Compressed air monitoring sensor networks
- Medical gas delivery equipment
Installation note:
Apply thread sealant to male threads only. Tighten with 12-15 N·m torque using a crowfoot wrench.
Avoid cross-threading by hand-starting all connections. Pressure test at 1.25× system pressure after installation.
| Property | Property Value |
|---|---|
| sku | X-APX804 |
