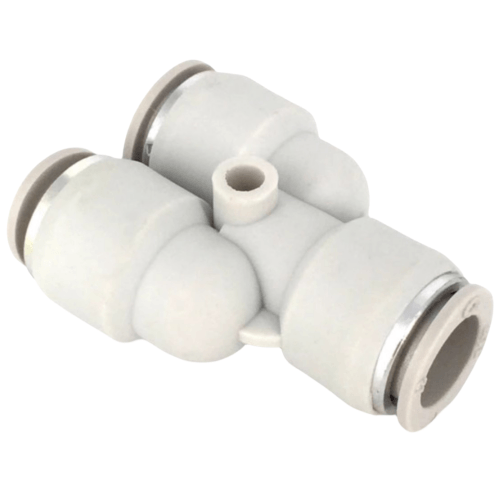

Airtac X-APY Connector - Y-Type Tee X-APY4
AirTAC X-APY4 Y-Type Tee Fitting Technical Details
- Model: X-APY4
- Type: Y-shaped triple connection (diverting/combining flow)
- Thread standard: BSPP (G-thread)
- Port size: 1/4" (M5×0.8 optional)
- Material: Nickel-plated brass (POM plastic version: X-APY4-P)
- Max working pressure: 1.6 MPa (232 psi)
- Burst pressure: ≥6.0 MPa
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Surface roughness: Ra0.8μm (internal flow path)
- Weight: 28g (brass) / 12g (POM)
- Dimensions: 25mm(W) × 25mm(H) × 36mm(L)
- Seal type: Embedded O-ring (NBR standard)
- Flow coefficient (Cv): 0.15
- Vibration resistance: 10-2000Hz, 2.5mm amplitude
Three-way pneumatic connector with 60° Y-shaped geometry for optimized flow distribution. Features precision-machined internal channels to minimize pressure drop (ΔP ≤0.02MPa @1MPa). The asymmetrical port design allows quick identification of main/diverted flow paths. Corrosion-resistant finish passes 96hr salt spray test.
- Branch line connections in robotic end effectors
- Vacuum system flow splitting for parallel suction cups
- Modular pneumatic circuit prototyping
- Coolant line distribution in CNC machines
- Medical gas manifold assemblies
Installation protocol:
Apply 360° thread sealant (LOCTITE 577 recommended) and torque to 1.2-1.5N·m.
Arrow markings indicate primary flow direction - align with system schematic.
