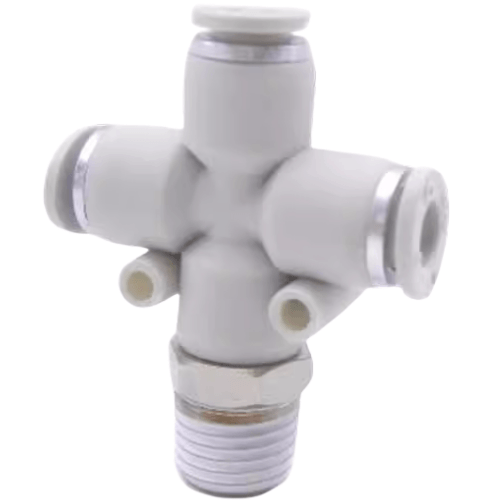

Airtac X-APZR Cross Threaded Cross Fitting X-APZR1002
AirTAC X-APZR1002 Cross Threaded Tee Fitting Technical Details
- Model: X-APZR1002
- Type: Cross-type (4-way) pneumatic connector
- Thread Standard: Metric (M5×0.8)
- Material: Brass (Nickel-plated surface)
- Pressure Rating: 0.05-1.5 MPa
- Temperature Range: -20℃ to 120℃
- Seal Type: Dual O-ring structure
- Seal Material: NBR (Nitrile rubber)
- Port Configuration: 4-way cross connection
- Surface Treatment: Electroplated zinc with chromate conversion coating
- Installation Torque: 0.8-1.2 N·m
- Weight: 28.5g ±0.5g
- Dimensions: 32mm(L) × 32mm(W) × 32mm(H)
- Compliance: RoHS compliant
Precision-engineered cross connector featuring multi-directional flow paths for complex pneumatic circuit designs. The diamond-shaped body with chamfered edges ensures 360° port accessibility and tool clearance. Enhanced leak prevention through dual-stage sealing with compression-limited design prevents O-ring over-deformation.
- Multi-axis pneumatic tool manifolds
- Robotic end-effector air distribution
- Modular pneumatic training systems
- Medical device gas line junctions
- CNC machine tool air circuit branching
