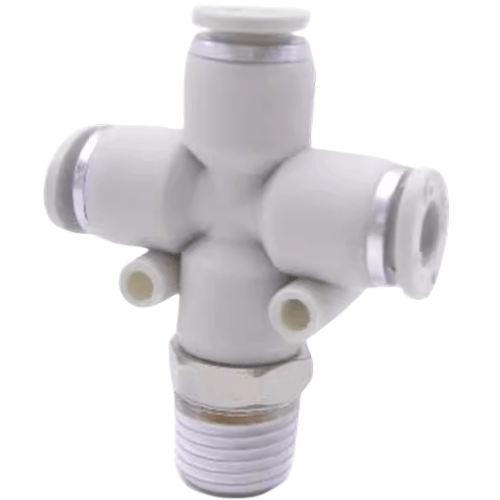

Airtac X-APZR Cross Threaded Cross Fitting X-APZR1004
AirTAC X-APZR1004 Cross Threaded Tee Fitting Specifications
- Model: X-APZR1004
- Type: 4-way cross threaded tee (equal port)
- Thread standard: Metric (M5×0.8) / Optional NPT/PT versions
- Material: Brass (Nickel-plated) / Optional stainless steel SS304
- Pressure rating: 0.2-1.0 MPa (29-145 PSI)
- Temperature range: -5℃ to 80℃ (non-freezing conditions)
- Surface hardness: HV200±20 (plated surface)
- Seal type: Metal-to-metal sealing (no O-ring required)
- Weight: 18.5g (brass version) / 24.3g (stainless steel)
- Dimensions: 21.5mm(L) × 21.5mm(W) × 21.5mm(H) (cube form factor)
- Port spacing: 10mm center-to-center between adjacent ports
- Corrosion resistance: 96hrs neutral salt spray test passed
Precision-machined cross connector featuring quad-directional flow distribution with uniform internal bore geometry. The chamfered entry ports (R0.3mm) ensure smooth airflow transition, while the electroless nickel plating provides enhanced wear resistance. Compatible with pneumatic tubing OD 4mm-6mm through adapter fittings.
- Modular pneumatic circuit branching in automation cells
- Sensor mounting clusters in packaging machinery
- Vacuum system distribution nodes
- Robotic end-effector tooling manifolds
- Compressed air sampling points in quality control stations
Installation note:
Apply 0.5-1.5N·m torque during assembly. Use thread sealant only on male threads,
avoiding contamination of internal passages. Perform pressure decay test
(0.6MPa for 3min) after installation.
| Property | Property Value |
|---|---|
| sku | X-APZR1004 |
