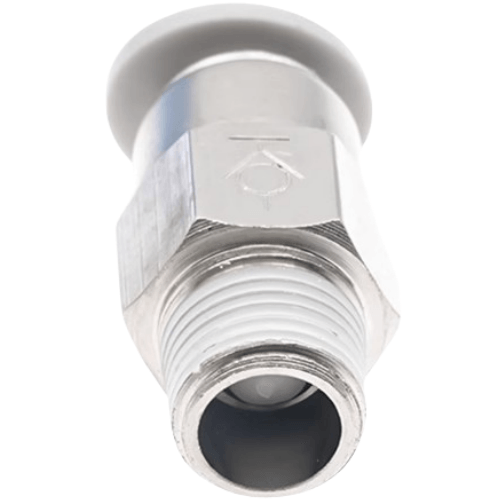

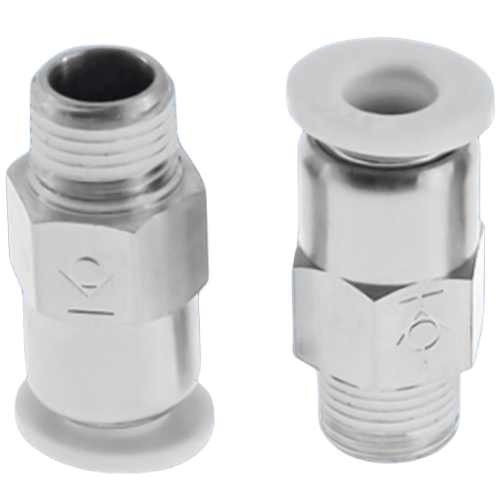

Airtac X-ASPC Connector - Straight Through Quick Plug X-ASPC1002
AirTAC X-ASPC1002 Straight Through Quick Connector Full Specifications
- Model: X-ASPC1002
- Type: Straight-through push-to-connect fitting (non-valved)
- Thread standard: BSPP (G thread)
- Port size: 1/8" (M5×0.8 optional)
- Material: Brass body with nickel plating + PPS resin sleeve
- Seal material: NBR (nitrile) O-ring
- Operating pressure: 0-1.0 MPa (0-145 PSI)
- Temperature range: -20℃ to 80℃ (non-condensing)
- Tube compatibility: Ø4mm (5/32") polyurethane/nylon tubing
- Insertion force: ≤30N (with tube)
- Release force: 5-15N (ring pull)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Weight: 18g ±0.5g
- Dimensions: 21mm(L) × 16mm(W) × 16mm(H)
- Certification: RoHS compliant, ISO 14743
Zero-leakage straight-through connector featuring one-handed operation with positive tactile feedback. The brass-nickel construction resists corrosion in humid environments, while the 360° rotatable design prevents hose twisting. Includes dust-resistant PPS sleeve and color-coded identification (standard blue).
- Pneumatic tool air supply lines
- Modular automation equipment with frequent hose changes
- Medical oxygen delivery systems (non-critical)
- Packaging machine pneumatic networks
- 3D printer air-assisted cooling setups
Installation protocol:
Cut tubing square with dedicated cutter, insert fully until "click" is heard.
For maintenance: Depress release collar before tube extraction.
Max reconnection cycles: 50 times (tube replacement recommended after 30 cycles).
| Property | Property Value |
|---|---|
| sku | X-ASPC1002 |
