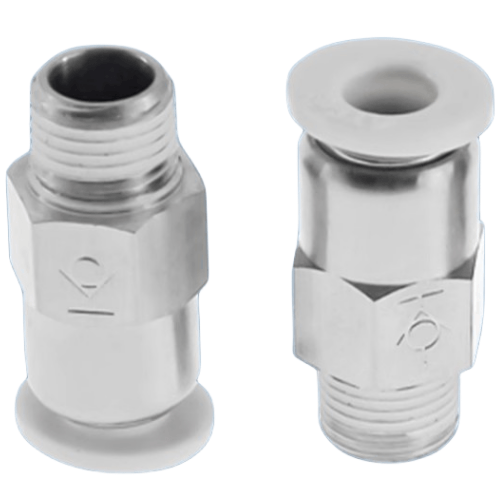

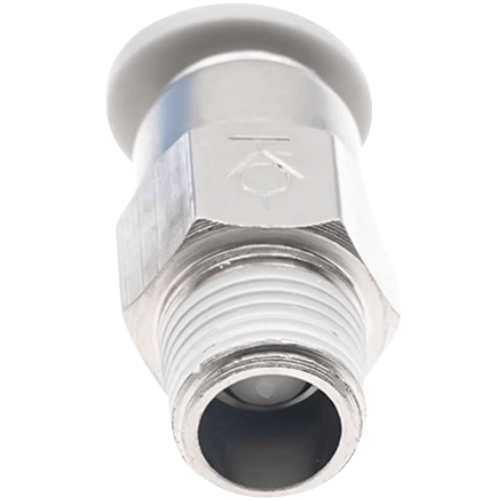

Airtac X-ASPC Connector - Straight Through Quick Plug X-ASPC1003
AirTAC X-ASPC1003 Straight-Through Quick Connect Fitting Specifications
- Model: X-ASPC1003
- Type: Straight-through quick connect with push-to-connect mechanism
- Body material: Nickel-plated brass (corrosion resistant)
- Seal material: NBR (Nitrile) rubber
- Operating pressure: 0-1.0 MPa (145 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Port size: PT1/8 (G1/8, NPT1/8 optional)
- Tube compatibility: Φ4mm OD polyurethane/nylon tubing
- Flow rate: 300 L/min (at 0.5 MPa)
- Leakage: ≤0.1 NmL/min (bubble test)
- Actuation force: 25-35N push-in force
- Weight: 12g ±0.5g
- Dimensions: 20mm(L) × 10mm(Dia.) × 10mm(Port spacing)
- Certification: RoHS compliant
High-flow push-lock connector featuring one-touch tube installation with positive lock click confirmation. The 360° rotatable design allows flexible piping arrangements while maintaining seal integrity. Brass construction ensures vibration resistance in high-cycle applications. Compatible with air, water, and inert gases (excluding corrosive media).
- Pneumatic tool quick-disconnect systems
- Automated assembly line fixture connections
- Medical device pneumatic circuits
- Packaging machine air blow systems
- Laboratory equipment gas line interfaces
- 1. Cut tube end square (max 0.5mm deviation)
- 2. Insert tube fully until audible "click"
- 3. Confirm retention by gently pulling (5-10N force)
- 4. For disconnection: Press release collar while pulling tube
Maintenance tip:
Clean residual pipe chips before installation. Replace seal kit (X-ASK1003) every 50,000 cycles or 2 years. Avoid sharp bends within 50mm of fitting.
