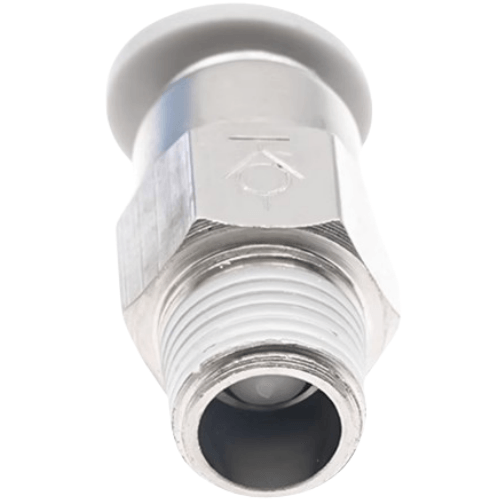

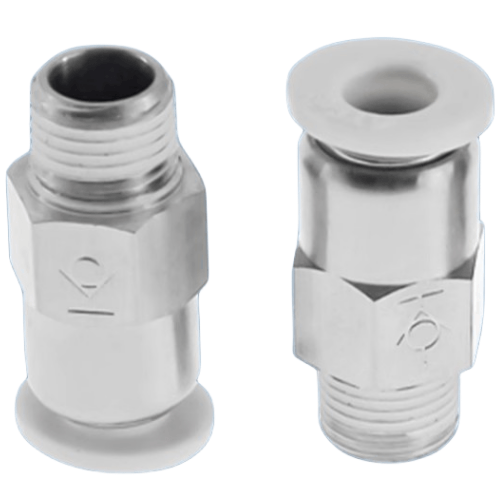

Airtac X-ASPC Connector - Straight Through Quick Plug X-ASPC1004
AirTAC X-ASPC1004 Straight-Type Push-to-Connect Fitting Specifications
- Model: X-ASPC1004
- Type: Straight-type push-to-connect (one-touch) fitting
- Material: Nickel-plated brass body
- Seal material: Oil-resistant NBR rubber
- Thread standard: PT1/4 (BSPP)
- Operating pressure: 0.2–1.0 MPa
- Temperature range: -20℃ to 80℃
- Max flow rate: 200 L/min (ANR)
- Tube compatibility: PU/Nylon tubes (OD 8mm)
- Connection type: Male thread to tube (straight)
- Vibration resistance: ≤5 m/s²
- Weight: 52g ±2g
- Dimensions: 42mm(L) × 18.5mm(W) × 18.5mm(H)
- Cycle life: >10,000 insertions
- IP rating: IP40 (non-submerged)
High-flow pneumatic connector featuring one-handed tube insertion and extraction. The ergonomic release collar prevents accidental disconnections, while the precision-machined brass construction ensures leak-free performance in dynamic applications. Includes built-in tube grip teeth for secure retention.
- Pneumatic tool quick-disconnect systems
- Automated assembly line air supply
- Packaging machine actuator connections
- Industrial robot EOAT (end-of-arm tooling)
- CNC machine coolant line junctions
Installation note:
Cut tube ends square and deburr before insertion. For optimal sealing,
push tube until it bottoms out (audible click). Rotate fitting 90° during
maintenance checks to verify secure engagement.
- AirTAC PUN-0808 PU tubing (8mm OD)
- X-ASFC series filter regulators
- X-SLV8 series solenoid valves
| Property | Property Value |
|---|---|
| sku | X-ASPC1004 |
